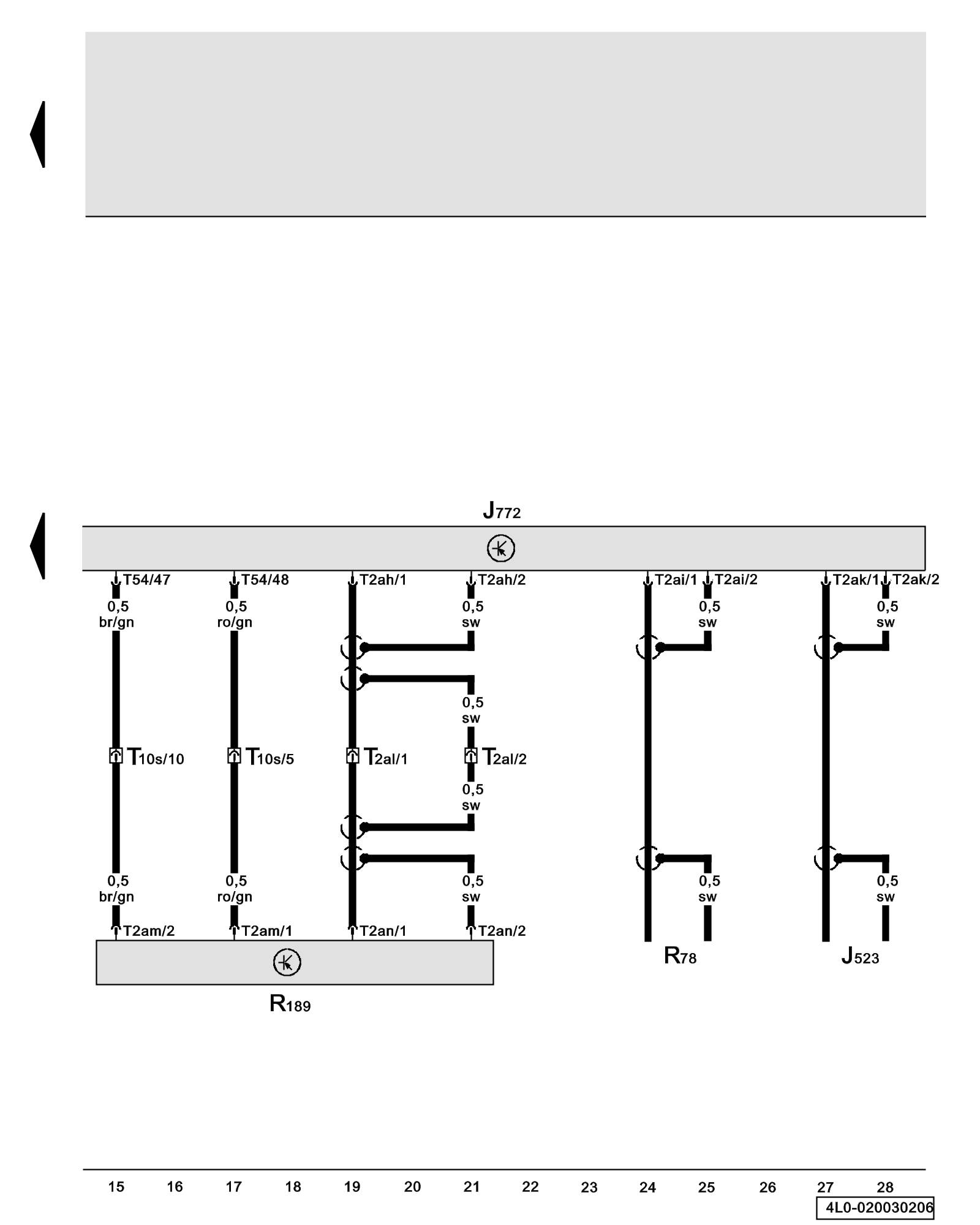

Diagram 20/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Rear View Camera System Control Module, Rear View Camera





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J523 - Front Information Display Control Head Control Module Component Locations

J772 - Rear View Camera System Control Module Overview Of Control Modules

R78 - TV Tuner Overview Of Control Modules

R189 - Rear View Camera Rear View Camera System Overview

T2ah - Double Connector, grey, on rear view camera system control module

T2ai - Double Connector, brown, on rear view camera system control module

T2ak - Double Connector, green, on rear view camera system control module

T2al - Double Connector, brown, rear lid coupling

T2am - Double Connector, black, on rear view camera

T2an - Double Connector, grey, on rear view camera

T10s - 10-Pin Connector, pink, rear lid coupling

T54 - 54-Pin Connector, black, on rear view camera system control module
