Diagram 9/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

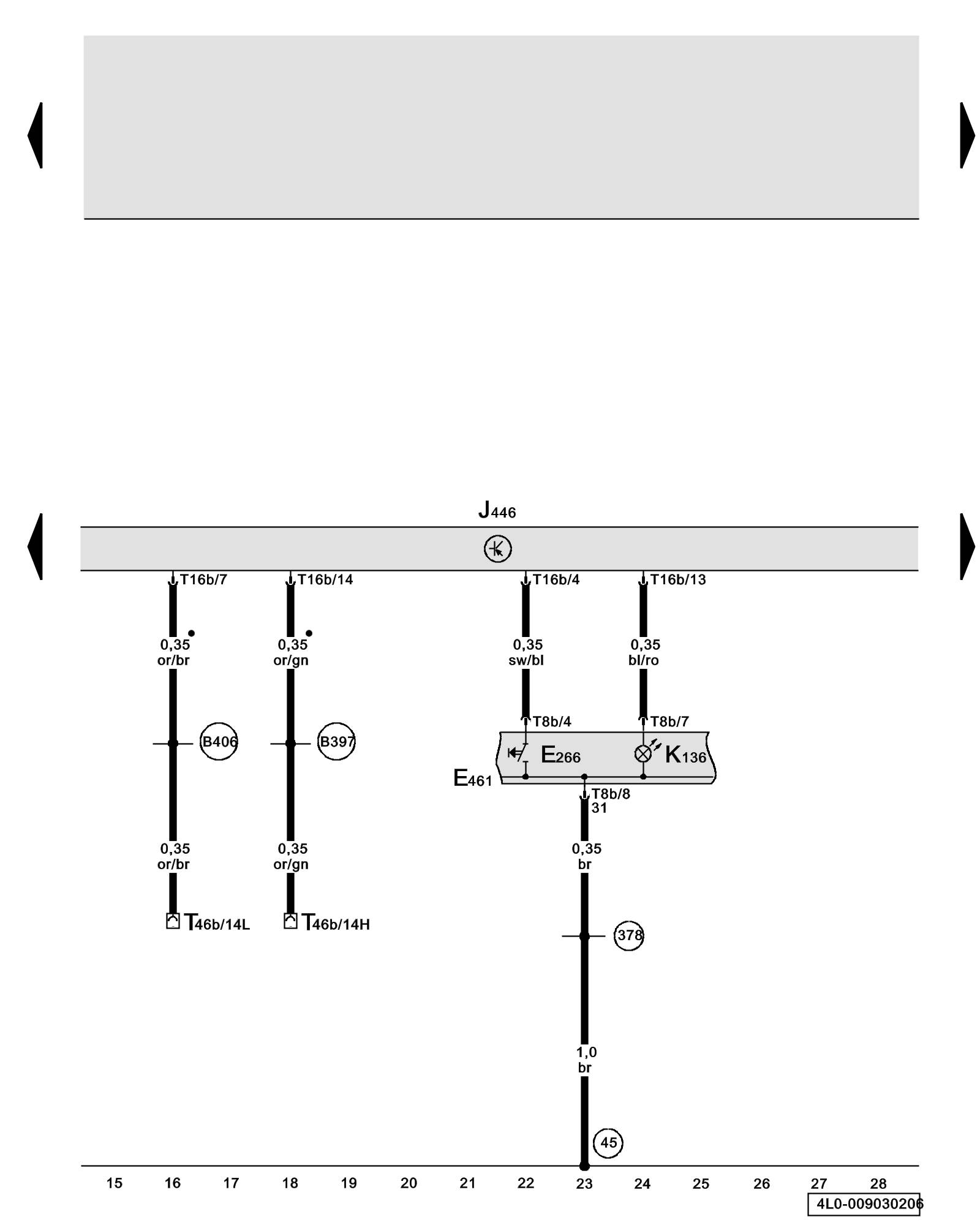

Parking Aid Control Module, Parking Aid Button, Parking Aid Indicator Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E266 - Parking Aid Button

E461 - Front/Center Console Control Head

J446 - Parking Aid Control Module Overview Of Control Modules

K136 - Parking Aid Indicator Lamp

T8b - 8-Pin Connector, black, on front/center console control head

T16b - 16-Pin Connector, brown (Connector A), on parking aid control module Locations

T46b - 46-Pin Connector, black, right CAN separating connector Overview of Connector Stations

(45) - Ground Connection (behind instrument panel, center) Locations

(378) - Ground Connection 13 (in main wiring harness)

(B397) - Comfort System CAN-Bus High Connection 1 (in main wiring harness)

(B406) - Comfort System CAN-Bus Low Connection 1 (in main wiring harness)

• - CAN-Bus (data wire)

Previous Diagram 9/2 (Tracks 1-14)

Next Diagram 9/4 (Tracks 29-42)
