Diagram 99/3 (Tracks 15-28)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

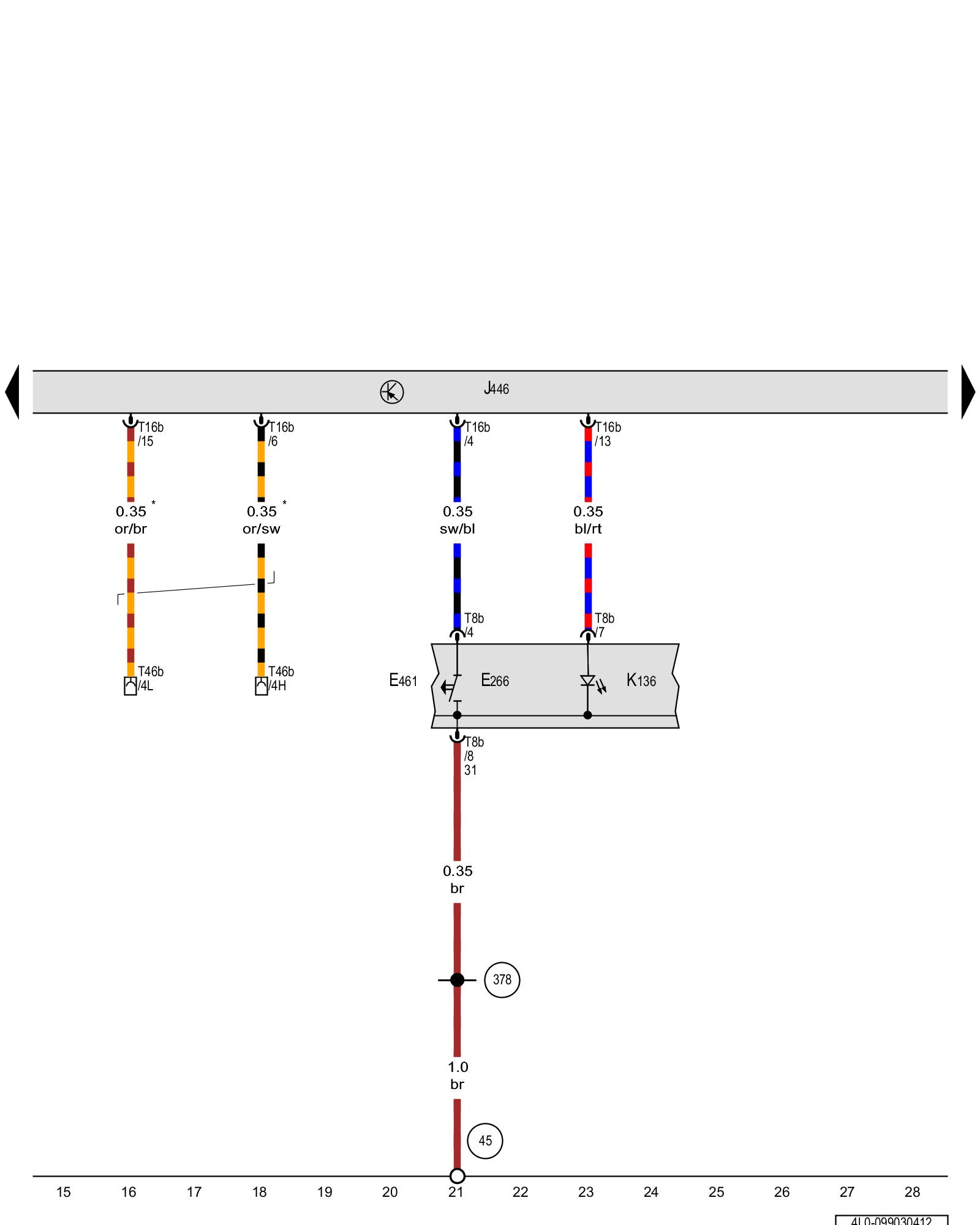

Parking aid button, Front center console control head, Parking aid control module, Parking aid indicator lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E266 - Parking aid button

E461 - Front center console control head

J446 - Parking aid control module Overview Of Control Modules

K136 - Parking aid indicator lamp

T8b - 8-pin connector

T16b - 16-pin connector Locations

T46b - 46-pin connector, in the instrument panel, right Overview of Connector Stations

(45) - Ground connection behind instrument panel, center Locations

(378) - Ground connection 13 (in main wiring harness)

* - Data bus wire (CAN bus)

Previous Diagram 99/2 (Tracks 1-14)

Next Diagram 99/4 (Tracks 29-42)
