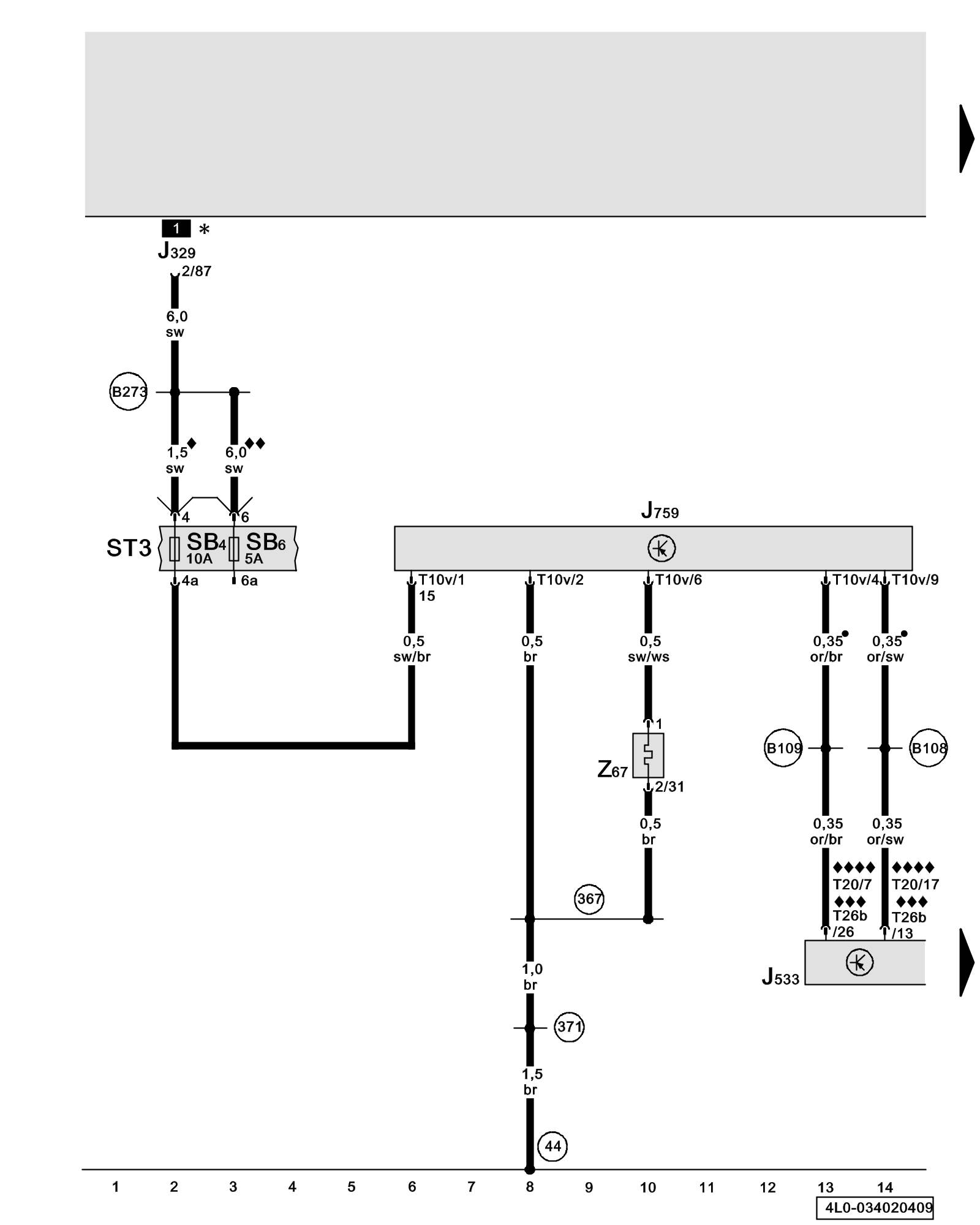

Diagram 34/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Directional Stabilization Assistance Control Module, Directional Stabilization Assistance Windshield Heater, Fuse





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J329 - Power Supply Relay (terminal 15) Overview Of Relay

J533 - Data Bus On Board Diagnostic Interface Overview Of Control Modules

J759 - Directional Stabilization Assistance Control Module Overview Of Control Modules

SB4 - Fuse 4 (on fuse panel B) Overview Of Fuses

SB6 - Fuse 6 (on fuse panel B) Overview Of Fuses

T10v - 10-Pin Connector, brown, directional stabilization assistance control module

T20 - 20-Pin Connector, black, on data bus on board diagnostic interface

T26b - 26-Pin Connector, black, on data bus on board diagnostic interface

Z67 - Directional Stabilization Assistance Windshield Heater Headlamp Assist and Lane Assist Assembly Overview

(44) - Ground Connection (on left lower A-pillar) Locations

(367) - Ground Connection 2 (in main wiring harness)

(371) - Ground Connection 6 (in main wiring harness)

(B108) - CAN-Bus Extended High Connection 1 (in main wiring harness)

(B109) - CAN-Bus Extended Low Connection 1 (in main wiring harness)

(B273) - Plus Connection (15) (in main wiring harness)

• - CAN-Bus (data wire)

* - Relay and fuse carrier below driver's seat

♦ - Through May 2007

♦♦ - from June 2007

♦♦♦ - Through May 2008

♦♦♦♦ - from June 2008
