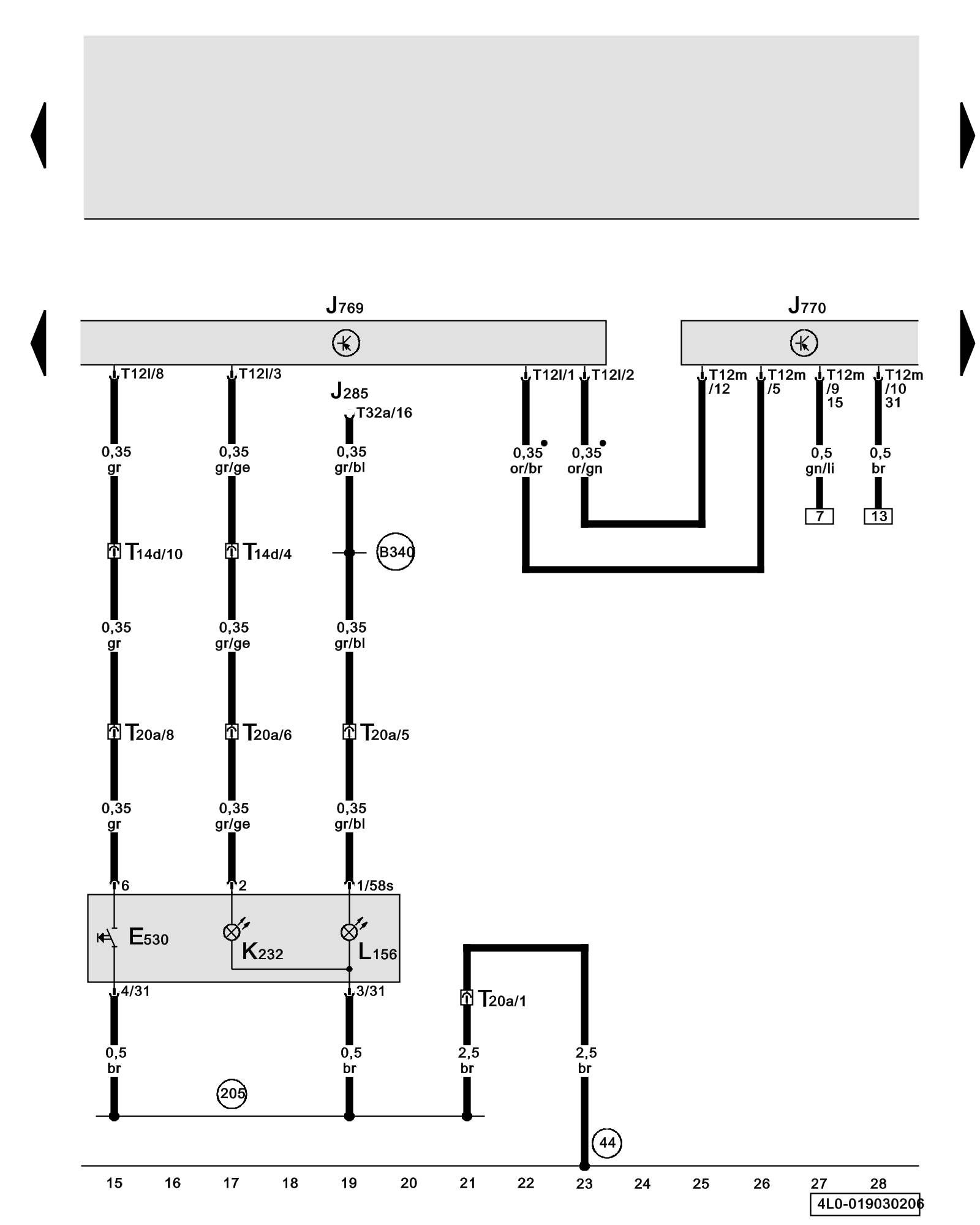

Diagram 19/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Lane Change Assistance Button, Lane Change Assistance Indicator Lamp





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E530 - Lane Change Assistance Button

J285 - Instrument Cluster Control Module Overview Of Control Modules

J769 - Lane Change Assistance Control Module Overview Of Control Modules

J770 - Lane Change Assistance Control Module 2 Overview Of Control Modules

K232 - Lane Change Assistance Indicator Lamp

L156 - Switch Illumination Lamp

T12l - 12-Pin Connector, black, on lane change assistance control module

T12m - 12-Pin Connector, black, on lane change assistance control module 2

T14d - 14-Pin Connector, brown, rear right bumper

T20a - 20-Pin Connector, black, front left door

T32a - 32-Pin Connector, grey, on instrument cluster control module

(44) - Ground Connection (on left lower A-pillar) Locations

(205) - Ground Connection (in Driver's door wiring harness)

(B340) - Connection 1 (58s) (in main wiring harness)

• - CAN-Bus (data wire)
