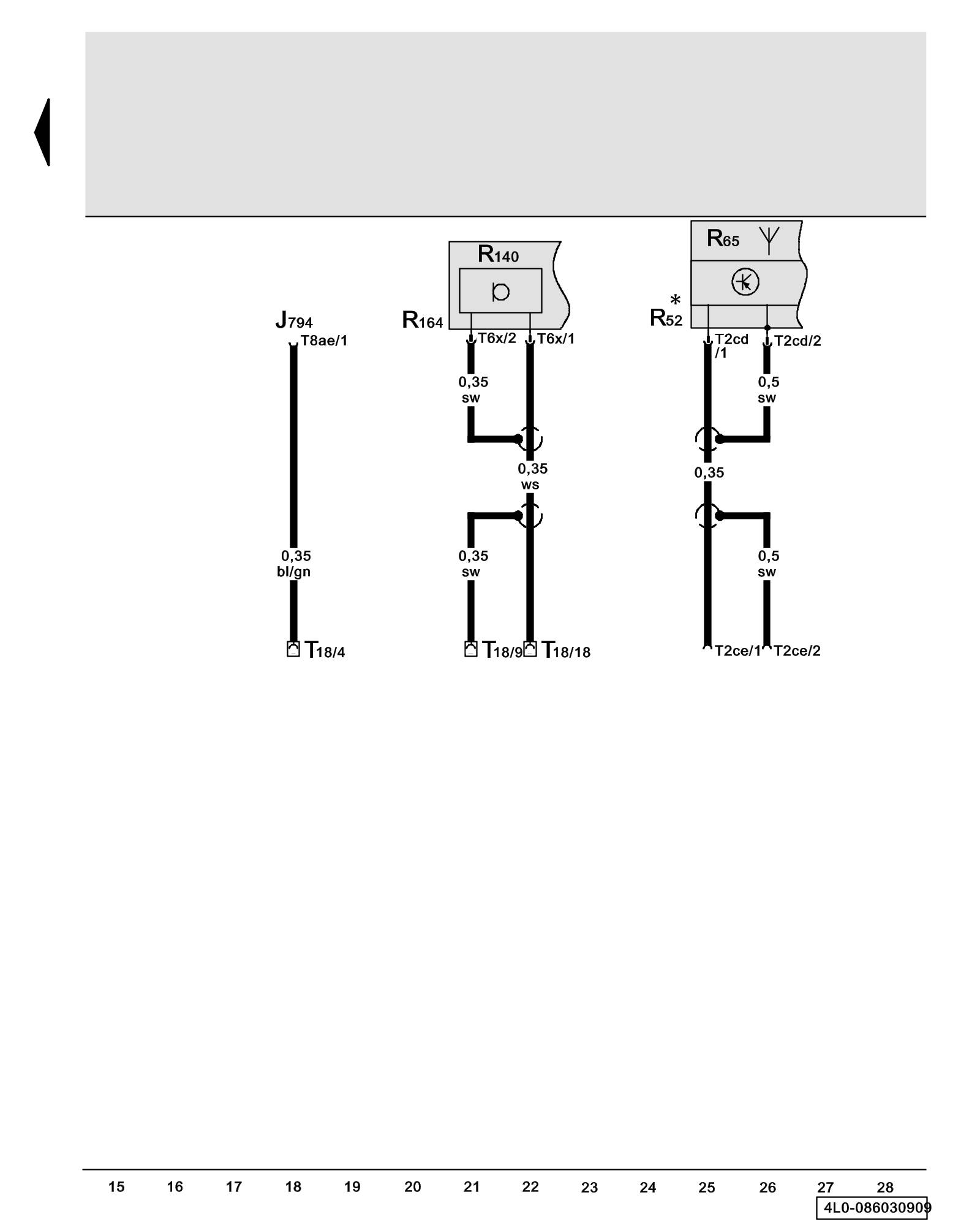

Diagram 86/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Cellular Telephone Preparation without Hands Free System





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J794 - Control Module for Information Electronics 1 Component Locations Overview Of Control Modules

R52 - Antenna for Radio, Telephone, Navigation System Locations

R65 - Telephone Antenna

R140 - Left Front Microphone Phone System Components Locations

R164 - Microphone Unit (in front roof module) Phone System Components Locations

T2cd - Double Connector, purple, on antenna for radio, telephone, navigation system

T2ce - Double Connector, purple, behind glove compartment

T6x - 6-Pin Connector, blue, on microphone unit (in front roof module)

T8ae - 8-Pin Connector, brown (Connector A), on control module for information electronics 1

T18 - 18-Pin Connector, black, behind glove compartment

* - Roof Antenna

Previous Diagram 86/2 (Tracks 1-14)
