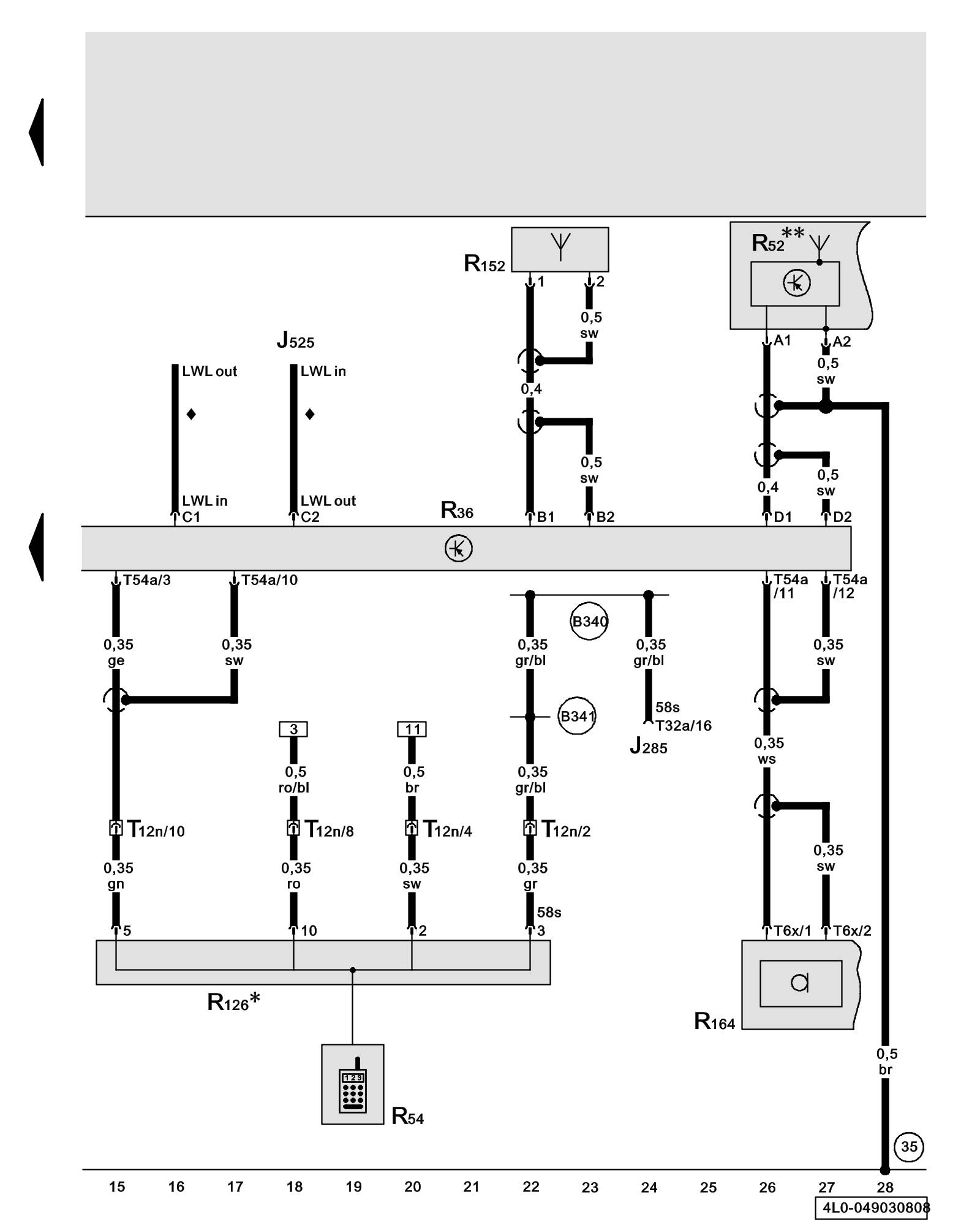

Diagram 49/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Transceiver, Telephone Baseplate, Bluetooth Antenna, Microphone Unit (in front roof module), Antenna for Radio, Telephone, Navigation System





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J285 - Instrument Cluster Control Module Overview Of Control Modules

J525 - Digital Sound System Control Module Component Locations

R36 - Telephone Transceiver Overview Of Control Modules

R52 - Antenna for Radio, Telephone, Navigation System Locations

R54 - Cellular Telephone Phone System Components Locations

R126 - Telephone Baseplate Phone System Components Locations

R152 - Bluetooth Antenna

R164 - Microphone Unit (in front roof module) Phone System Components Locations

T6x - 6-Pin Connector, blue, on microphone unit (in front roof module)

T12n - 12-Pin Connector, black, in center console

T32a - 32-Pin Connector, grey, on instrument cluster control module Locations

T54a - 54-Pin Connector, telephone transceiver

(35) - Ground Connection (below front passenger's seat) Locations

(B340) - Connection 1 (58s) (in main wiring harness)

(B341) - Connection 2 (58s) (in main wiring harness)

* - Models with telephone handset in center armrest

** - Roof Antenna

♦ - FOC - Fibre Optic Conductor => Wiring Diagram Infotainment-Data Bus (Most-Ring)

Previous Diagram 49/2 (Tracks 1-14)
