Digital Sound System Control Module 2

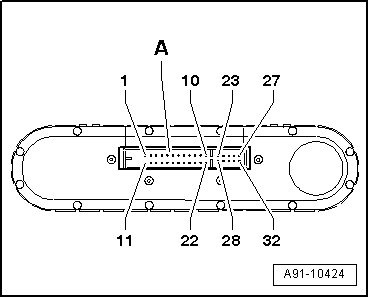

A Black 32-pin connector (T32g)

• Unlisted connector terminals are not used.

A - Multi-Pin Connector, Black 32-pin (T32g)





1 Terminal 30
2 Terminal 31
3 Right Front Bass Speaker (R23) (+)
4 Right Front Bass Speaker (R23) (-)
5 Left Front Bass Speaker (R21) (+)
6 Left Front Treble Speaker Motor (V344) (-)
7 Left Front Treble Speaker Motor (V344)
8 Digital sound system control module (J525)
9 Digital sound system control module (J525)
10 Digital sound system control module (J525)
11 Digital sound system control module (J525)
12 Digital sound system control module (J525)
13 Digital sound system control module (J525)
14 Digital sound system control module (J525)
15 Bass Loudspeaker (R100) (+)
16 Bass Loudspeaker (R100) (-)
17 Left Front Bass Speaker (R21) (-)
18 Left Front Treble Speaker Motor (V344) (+)
19 Right Front Treble Speaker Motor (V345)
20 Digital sound system control module (J525)
21 Right Front Treble Speaker Motor (V345) (+)
22 Right Front Treble Speaker Motor (V345) (-)
23 Digital sound system control module (J525)
24 Digital sound system control module (J525)
25 Digital sound system control module (J525)
26 Digital sound system control module (J525)
27 Digital sound system control module (J525)
28 Right Rear Mid/Low Range Speaker (R160) (+)
29 Right Rear Mid/Low Range Speaker (R160) (-)
30 Digital sound system control module (J525)
31 Left Rear Mid/Low Range Speaker (R159) (+)
32 Left Rear Mid/Low Range Speaker (R159) (-)
