Noise Insulation

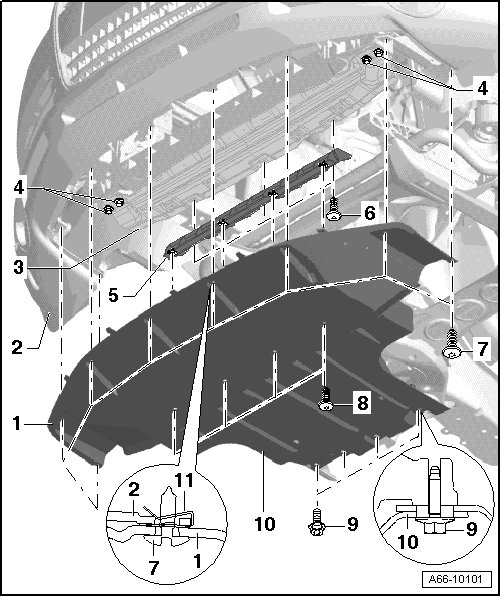

Noise Insulation






1 Noise Insulation, Front

• Removal:

- Remove screws - 7 -.

- Remove screws - 8 - and pull cover back from bumper cover.

2 Bumper Cover

3 Crossmember

4 Bolt

• 25 Nm

• M 8 x 25

5 Connecting Piece

6 Fitting Screw

• 8 Nm

• M 6 x 18

7 Metal Screw

• 2 Nm

8 Bolt

• 8 Nm

• M 5 x 15

9 Bolt

• 8 Nm

10 Rear Noise Insulation

• Remove screws - 8 -.

- Remove screws - 9 - and pull cover back under front cover.

11 Threaded Clip

• Connected to bumper cover.

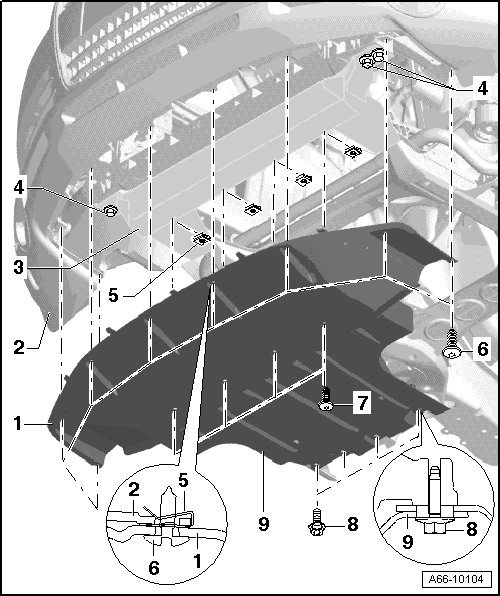

Versions For Specific Countries






1 Noise Insulation, Front

• Removal:

- Remove screws - 6 -.

- Remove screws - 7 - and pull cover back from bumper cover.

2 Bumper Cover

3 Cross Member

• Versions for specific countries:

4 Bolt

• 25 Nm

• M 8 x 25

5 Threaded Clip

• Slid onto crossmember.

6 Metal Screw

• 2 Nm

7 Bolt

• 2 Nm

• M 5 x 15

8 Bolt

• 8 Nm

9 Rear Noise Insulation

• Remove screws - 7 -.

- Remove screws - 8 - and pull cover back under front cover.
