Memory Seat/Steering Column Adjustment Control Module J136 or Passenger Memory Seat Control Module J521

Memory Seat/Steering Column Adjustment Control Module J136 or Passenger Memory Seat Control Module J521

Special tools, testers and auxiliary items required

• Engine and transmission holder (VAS 6095)






• Fixture for seat repair (VAS 6136)






• The memory seat/steering column adjustment control module (J136) or front passenger memory seat control module (J521) is located under the front seat.

• If Memory Seat/Steering Column Adjustment Control Module (J136) or (J521) is faulty, the upper seat pan frame must be removed. Refer to => [ Front Seat in Case of a Faulty Control Module or Seat Forward/Back Adjustment Motor ] Front Seat In Case of a Faulty Control Module or Seat Forward/Back Adjustment Motor.

Removing

Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and General Information ] Restraint System Components, Safety Precautions and General Information.

- Remove the front seat. Refer to => [ Front Seat in Case of a Faulty Control Module or Seat Forward/Back Adjustment Motor ] Front Seat In Case of a Faulty Control Module or Seat Forward/Back Adjustment Motor.

- Mount the fixture for seat repair (VAS 6136) on the engine and transmission holder (VAS 6095).

- Attach the front seat to the fixture for seat repair (VAS 6136).

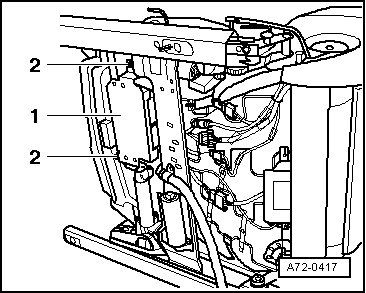

- Remove bolts - 2 - (quantity: 2).






- Rotate memory seat/steering column adjustment control module - 1 -.

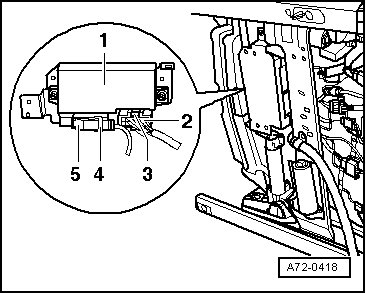

- Release retaining bracket - 4 - and remove connector - 5 -.






- Press in catches - 3 - (quantity: 2) and disconnect connector - 2 -.

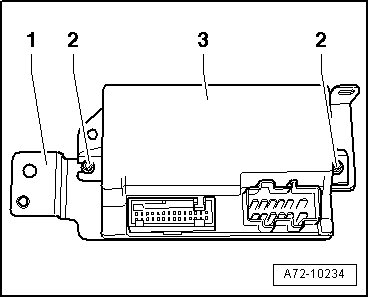

- Remove the bolts - 2 -.






- Remove Memory Seat/Steering Column Adjustment Control Module (J136) or (J521) - 3 - from bracket - 1 -.

Installation

Follow all safety precautions when working on pyrotechnic components. Refer to => [ Restraint System Components, Safety Precautions and General Information ] Restraint System Components, Safety Precautions and General Information.

Install in reverse order of removal. Note the following:

Before handling airbag units (for example, when disconnecting the harness connector), the person handling them must "discharge static electricity". For example, by briefly touching the door striker pin.

- Route and secure wiring according to photos or sketches that were made.

- Ensure all connectors are engaged correctly.

• Make sure the connectors are installed all the way in and are secure.

• Make sure the wires do not get caught.

Ignition must be on when connecting battery. If pyrotechnic components (for example, airbag, belt tensioner) are not repaired correctly, they may deploy unintentionally after connecting battery. Maintain personal safety when connecting the battery by staying out of airbag deployment areas, keeping a distance from belt tensioners/seat belts and ensuring no other people are in the vehicle interior at the moment when the battery is connected.

- Switch on ignition.

- Connect the battery ground cable with the ignition turned on.

- If the airbag indicator lamp (K75) indicates a fault after installation, the DTC memory must be checked, deleted and checked again. Refer to Vehicle diagnostic tester.

For the correct tightening specifications, refer to => [ Memory Seat/Steering Column Adjustment Control Module J136 or Passenger Memory Seat Control Module J521 Assembly Overview ] Memory Seat/Steering Column Adjustment Control Module J136 or Passenger Memory Seat Control Module J521 Assembly Overview
