Left Side Trim Panel, Outer Part

Left Side Trim Panel, Outer Part

Removing






- Remove the 2nd row seat bench. Refer to => [ 2nd Row, 3-Seater Assembly Overview ] 2nd Row, 3-Seater Assembly Overview.

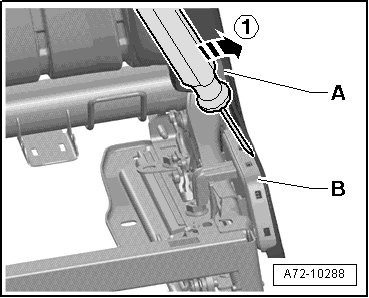

- First press outer part of left side trim panel - A - off inner part of left side trim panel - B - all around - arrow 1 - using a screwdriver.

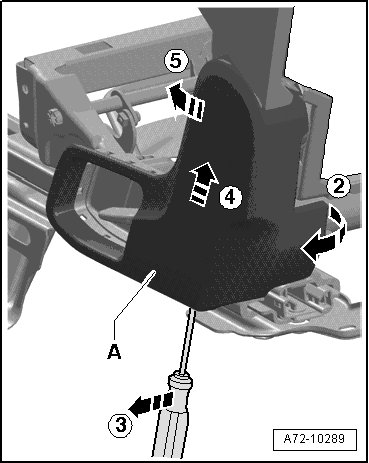

- Then turn trim panel in rear area toward outside - arrow 2 - and at the same time, pry trim panel out with a screwdriver in lower area (clip) - arrow 3 -.






- Then press trim out of upper catch - arrow 4 - and slide it in - direction of arrow 5 - off backrest.

Installation

Install in reverse order of removal.
