Front Power and Memory Seats Without Active Head Restraint System Assembly Overview - From 07/2006

Front Power and Memory Seats without Active Head Restraint System Assembly Overview - from 07/2006

• With the introduction of backrests without the active head restraint system, the active head restraint system has been discontinued.

• The upper area of the backrest frame for backrests without the active head restraint system was changed.

• The angle adjustment has been changed on headrests for backrests without active head restraint system.

• The rear side of the upholstery was adapted in the upper area of the changed backrest frame.

• With the introduction of backrests without the active head restraint system, the mount for four-way lumbar support in the upper area of the backrest frame has changed.

• Removal and installation of curvature and height adjustment motors for four-way lumbar support is similar to removal and installation on backrests with active head restraint system.

• The covers are identical for backrests with and without the active head restraint system.

For safety reasons, headrests from vehicles with the active head restraint system should not be used on seats without the active head restraint system.

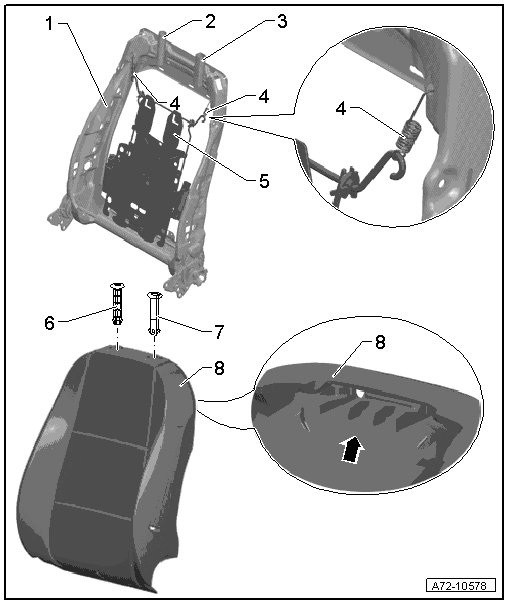

1 Backrest frame

2 Right headrest guide mount

• welded with backrest frame

3 Left headrest guide mount

• Welded with backrest frame

4 Spring

• Quantity: 2

• Engaged in backrest frame

• to upper four-way lumbar support mount

5 four-way lumbar support

• Removing and Installing, refer to => [ Four-Way Lumbar Support without Active Head Restraint System ] Four-Way Lumbar Support Without Active Head Restraint System

6 Right headrest guide

• Removing and Installing, refer to => [ Headrest Guides ] Headrest Guides

7 Left headrest guide

• Removing and Installing, refer to => [ Headrest Guides ] Headrest Guides

8 Cushion

• Rear side adapted to new backrest in upper area

• Removing and Installing, refer to => [ Backrest Cover and Upholstery ] Backrest Cover and Upholstery
