Trim Brackets Assembly Overview

Trim Brackets Assembly Overview

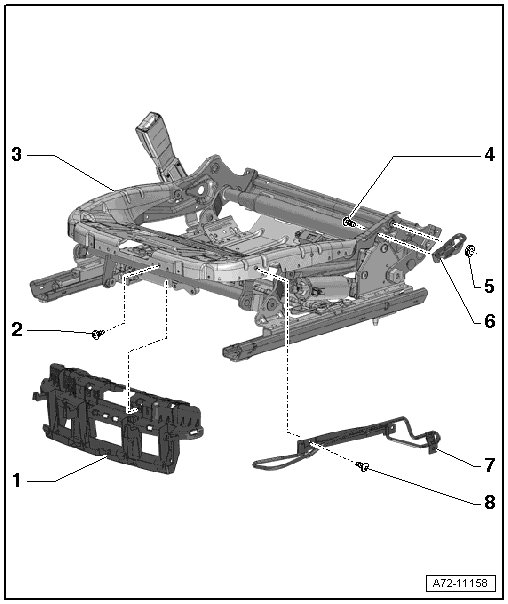

1 Bracket

• For the trim

• Removing and Installing, refer to => [ Trim Bracket ] Trim Bracket

2 Bolt

• Quantity: 5

• 3.5 Nm

3 Seat pan

4 Bolt

• 3.5 Nm

5 Intermediate piece

6 Belt guide

7 Retaining bracket

• For the trim

• Removing and Installing, refer to => [ Trim Retaining Bracket ] Trim Retaining Bracket

8 Bolt

• Quantity: 3

• 3.5 Nm
