Connector Station Assignment

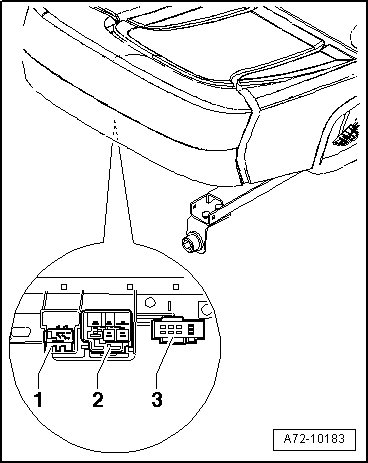

Connector Station Assignment

1. Side airbag, yellow

2. Entire heating, green

3. Seat heating, black
