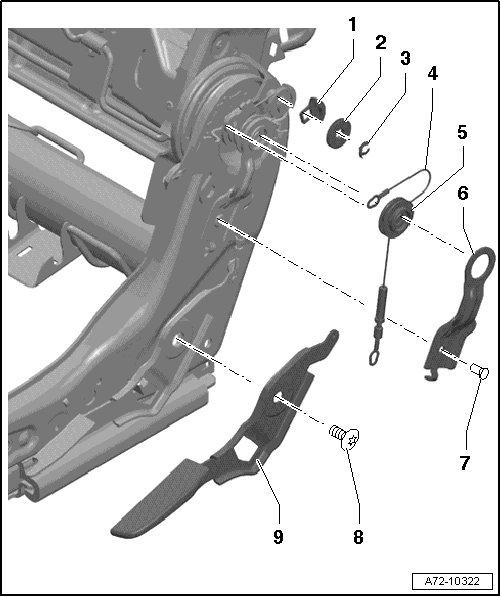

Backrest Adjustment Lever Cable Assembly Overview

Backrest Adjustment Lever Cable Assembly Overview






1 Protective cap

2 Idler pulley

3 Spring clamp

4 Cable

• Removing and Installing, refer to => [ Backrest Adjustment Lever Cable ] Backrest Adjustment Lever Cable

5 Guide rollers

• Note location

• Closed housing ring in direction of retaining plate

6 Retaining plate

7 Pop rivet

8 Bolt

• 10 Nm

9 Backrest adjustment lever with handle

• Removing and Installing, refer to => [ Backrest Adjustment Lever ] Backrest Adjustment Lever
