Glove Compartment Unlock Motor V327

Glove Compartment Unlock Motor V327

Removing






- Remove the glove compartment. Refer to => [ Glove Compartment ] Glove Compartment.

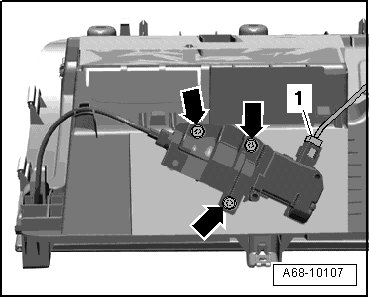

- Disconnect the connector - 1 -.

- Unscrew the screws - arrows - and remove the glove compartment unlock motor (V327) with the cover.

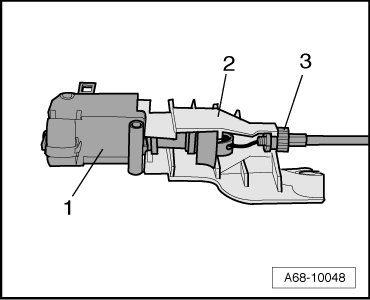

- Remove control cable - 3 - with the adjustment nut from the control cable bracket.






- Slide cover - 2 - off of the glove compartment unlock motor (V327) - 1 -.

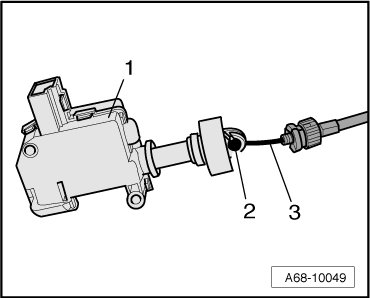

- Turn cable - 3 - and press retaining bolts - 2 - out of operating rod - 1 -.






- Remove cable.

Installation

Install in reverse order of removal. Note the following:

- Adjust the glove compartment cover control cable. Refer to => [ Glove Compartment Cover Control Cable, Adjusting ] Glove Compartment Cover Control Cable, Adjusting.

• For the correct tightening specifications; refer to => [ Passenger Side Glove Compartment and Instrument Panel Cover Assembly Overview ] Passenger Side Glove Compartment and Instrument Panel Cover Assembly Overview.
