Cupholder Cover Trim

Cupholder Cover Trim

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)






Removing






- Remove the cupholder. Refer to => [ Cupholder ] Cupholder.

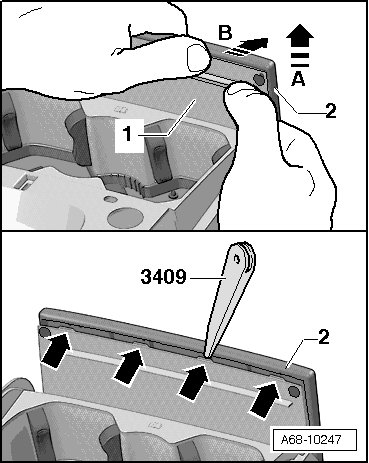

- Open cupholder cover - 1 -.

- Slide the trim - 2 - on the right side in direction of arrow - A - all the way and at the same time in direction of arrow - B -, until the right corner unclips.

- Continue in the same manner for the remaining 3 lock points using the trim removal wedge (3409).

Installation

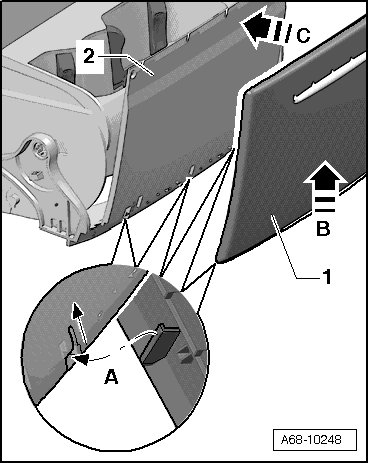

- Slide cupholder cover trim - 1 - into the 3 guides - A - in cupholder cover - 2 -.

- At the same time slide the trim - 1 - in direction of arrow - B - all the way - C -.

- Make sure the trim is engaged correctly.
