Cupholder

Cupholder

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)






Removing

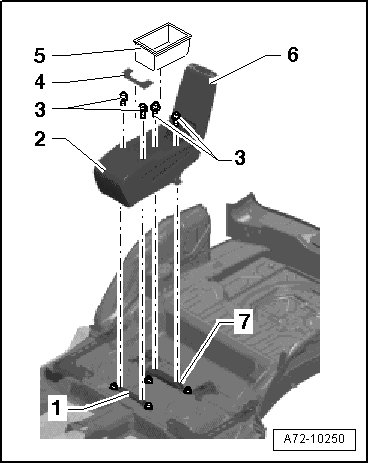

- Move the center armrest - 6 - all the way up and then open it up - 6 -.

- Unclip front cover - 4 - with Trim Removal Wedge (3409) and remove it.

- Unclip rear box - 5 - with the trim removal wedge (3409) and remove box - 5 - upward.

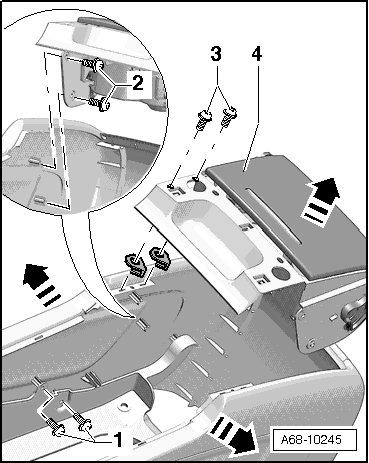

• Just the left side is shown on the following illustration, the right side it identical.

- Remove the screws - 1 - (quantity 4).






- Remove the screws - 2 - (quantity 4).

- Remove the screws - 3 - (quantity 4).

Be careful when removing the cupholder because the multibox could get scratched or damaged.

• Removal of the cupholder cannot be described exactly. It must be removed through trying.

- Remove cupholder - 4 - by carefully pressing apart the multibox alternately left and right. At the same time, remove the cupholder tipped upward.

Installation

Install in reverse order of removal.

For the correct tightening specifications, refer to => [ Multibox Components Assembly Overview ] Multibox Components Assembly Overview
