Center Armrest Trim

Center Armrest Trim

Special tools, testers and auxiliary items required

• Trim removal wedge (3409)






Removing

- Move the center armrest all the way up.

- Fold the center armrest all the way up.

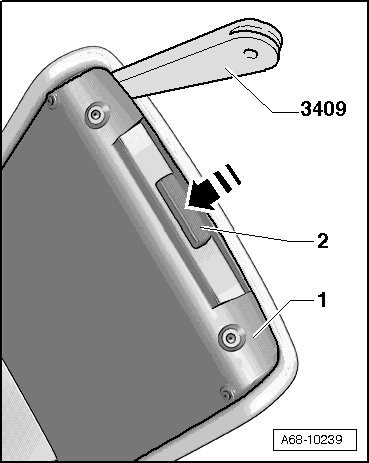

- Loosen the trim - 1 - in front of the button - 2 - with the trim removal wedge (3409). Push the button - 2 - all the way in when doing this.






- Pull the trim - 1 - forward and then down.

Installation

Install in reverse order of removal.

- Make sure that the clips (quantity: 4) are installed correctly. The clips are visible after removal. The clips are 31 in the assembly overview. Refer to => [ Multibox Components Assembly Overview ] Multibox Components Assembly Overview.
