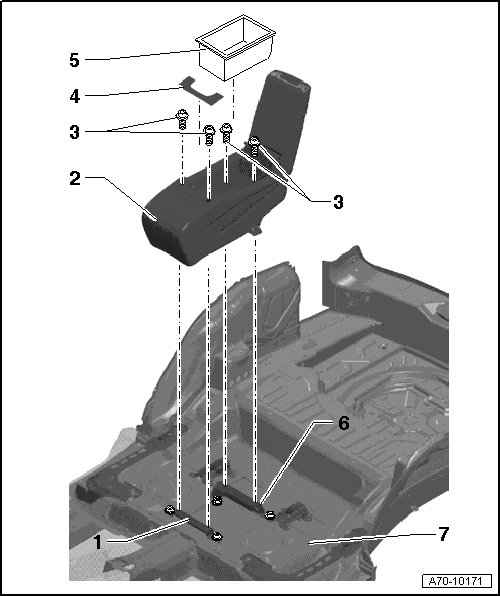

Multibox Assembly Overview

Multibox Assembly Overview






1 Front bracket

2 Multibox

• Removing and Installing, refer to => [ Multibox ] Multibox

3 Bolt

• 6 Nm

4 Cover

• clipped in

• unclip with Trim Removal Wedge (3409)

5 Box

• clipped in

• unclip with Trim Removal Wedge (3409)

6 Rear bracket

7 Carpet
