Luggage Compartment Side Trim Panel Overview

Luggage Compartment Side Trim Panel Overview

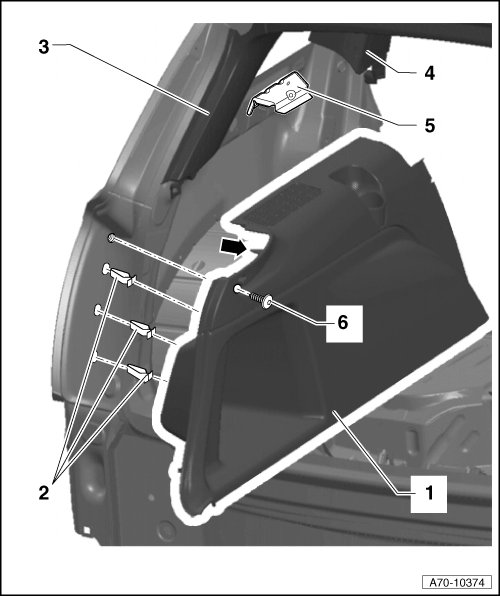

1 Luggage Compartment Side Trim

• Removing and installing, refer to => [ Luggage Compartment Side Trim ] Luggage Compartment Side Trim.

• When installing, the tab - arrow - must be inserted in the D-pillar trim => [ (Item 3) D-pillar Trim ].

2 Clips

• Replace if damaged.

3 D-pillar Trim

• Must be installed before installation of the luggage compartment side trim.

4 C-pillar Trim

• Before removing, the luggage compartment side trim must be removed.

• Removing and installing, refer to => [ C-Pillar Trim Overview ] C-Pillar Trim Overview.

5 Bracket

• Must be installed before installation of the luggage compartment side trim.

6 Bolt

• 2.5 Nm
