Garment Hook

Garment Hook

Removing






- Remove the B-pillar trim. Refer to => [ B-Pillar Trim Overview ] B-Pillar Trim Overview.

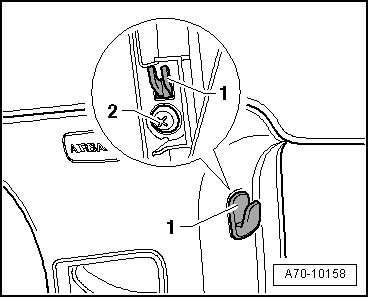

- Remove the bolt - 2 -.

- Disengage coat hook - 1 - from the B-pillar trim.

Installing






- Installation of coat hook - 1 - takes place in reverse order of removal.
