Window Frame Trim

Window Frame Trim

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing

- Lower the door window.

- Remove the door trim panel.

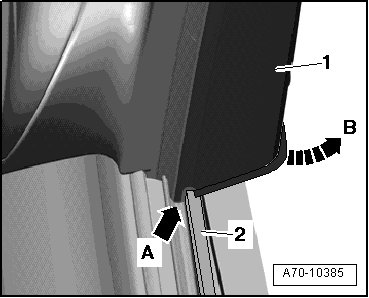

- Raise edge - arrow A - of window frame trim - 1 - over window frame seal - 2 -.

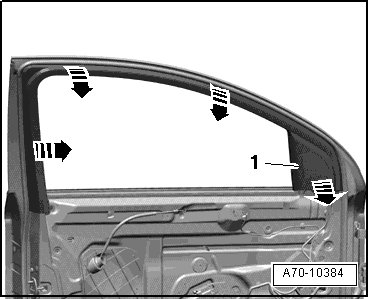

- Beginning at front, remove window frame trim - 1 - from window frame - arrows -.

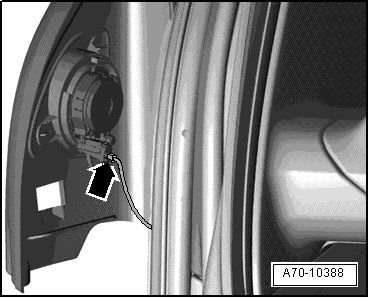

- Disconnect electrical connector - arrow - on speaker.






Installing






Install in reverse order of removal. Note the following:

- First position back of window frame trim on outer edge of frame.

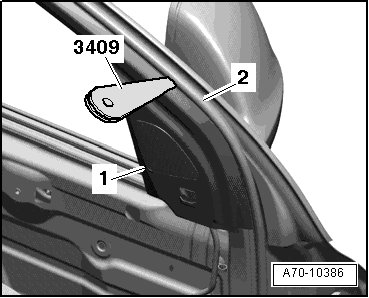

- Pull window frame trim - 1 - with (3409) over window frame seal - 2 -.

• Ensure window frame seal is not pulled off of window frame.

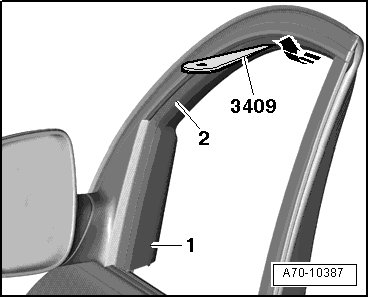

- Pull (3409) between window frame trim - 1 - and door seal - 2 - along the entire length and at the same time, press window frame trim onto frame.
