Front Center Armrest Padding

Front Center Armrest Padding

Removing

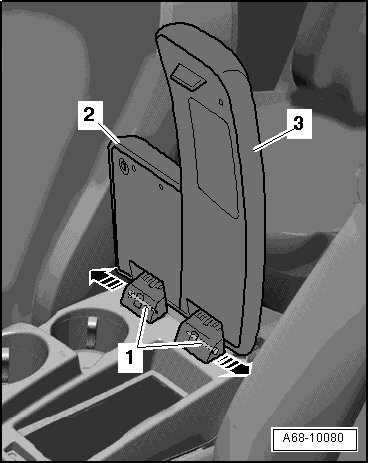

- Open front center armrest.

- Press hinge pins - 1 - for the left or right padding out with a screwdriver.

- Remove the hinge pins - arrows -.

- Remove right padding - 2 - or left padding - 3 - by pulling up out of mounts.

Installation

Install in reverse order of removal.
