Rear Subframe: Description and Operation

Subframe, Securing

Special tools, testers and auxiliary items required

• Torque Wrench 5-50 Nm (V.A.G 1331)

• Torque Wrench 50-200 Nm (V.A.G 1332)

• Scissor Lift Table (VAS 6131)

• Locating Pins (T10300)

• Supplementary Set, Audi Q7 (VAS 6131/13)

Certain steps require removal of subframe or entire rear axle. For installation, the original position of the subframe can be retained by using (T10300). Always install locating pins just prior to lowering subframe or complete rear axle. A road test must be performed after completing repairs. If the steering wheel is crooked, vehicle must be aligned. Refer to => [ Wheel Alignment ] Wheel Alignment.

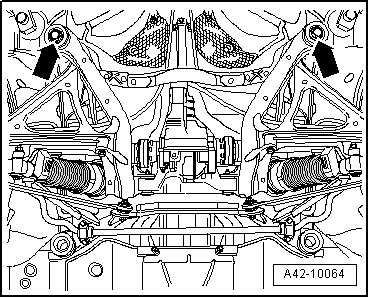

- Remove bolts - arrows -.






- Install (T10300) in threads by hand as far as - A - marking.






- Tighten the locating pins to 30 Nm while counter holding the sleeve at the flat areas using an open-end wrench to prevent it from turning.

Position of subframe is now secured.

- Place (VAS 6131) with (VAS 6131/13) under subframe.

Removal of (T10300) is performed in the reverse order of installation.
