Rear Door B and C-Pillar Trim

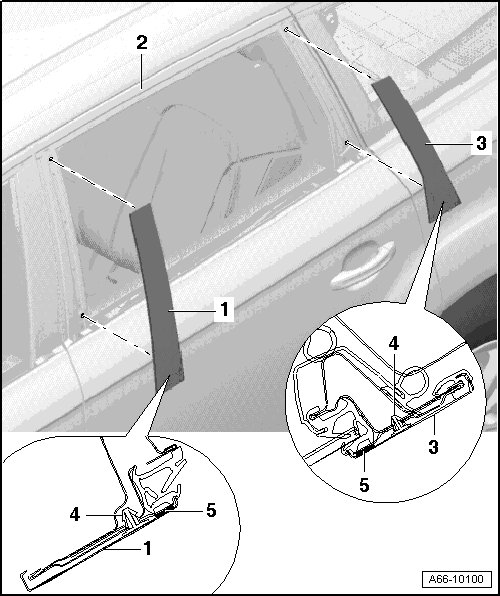

Rear Door B and C-Pillar Trim






1 B-pillar Trim Panel

• Removal cannot be done without destroying.

• To remove, loosen adhesive tape on rear edge, unclip trim panel and slide forward off door.

• Adhesion area must be free of dust and grease.

• Remove any adhesive residue and clean adhesion area with Cleaning Solution (D 009 401 04).

• Remove protective foil from adhesive tap before installation.

• To remove, slide back over door edge, clip in trim and press on adhesion area.

2 Rear Door

3 C-pillar Trim

• Removal cannot be done without destroying.

• To remove, loosen adhesive tape on front edge, unclip trim panel and slide back off door.

• Adhesion area must be free of dust and grease.

• Remove any adhesive residue and clean adhesion area with Cleaning Solution (D 009 401 04).

• Remove protective foil from adhesive tap before installation.

• To remove, slide forward over door edge, clip in trim and press on adhesion area.

4
• Clip

5 Adhesive Tape

• Pull off protective foil before installing.
