Tie-Down Eye With The Gap Cover

Tie-Down Eye With The Gap Cover

• For vehicles with tie-down eyes.

• The right => [ (Item 8) Right Gap Cover ] Luggage Compartment Floor Covering Overview and left => [ (Item 11) Left Gap Cover ] Luggage Compartment Floor Covering Overview gap covers are mounted to the tie-down eyes.

Removing

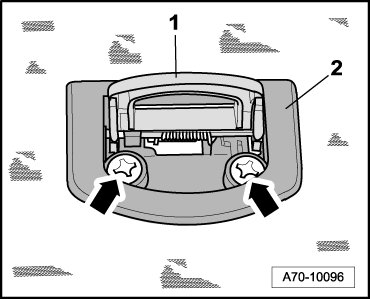

- Fold tie-down- 1 - upward.

- Remove the screws - arrows - and remove tie-down eye mount - 2 - and the gap cover.

Installing

Install in reverse order of removal.

Tightening specification, refer to => [ Luggage Compartment Floor Covering Overview ] Luggage Compartment Floor Covering Overview.
