Rear Cross Panel Trim

Rear Cross Panel Trim

Removing

- Remove the luggage compartment floor and the cargo tray.

- Remove the rear cross panel trim securing screws => [ (Item 4) Bolt ] Rear Cross Panel Trim Overview.

- If present, disconnect the harness connector, refer to and remove the rear cross panel trim upward.

Installing






Install in reverse order of removal. Note the following:

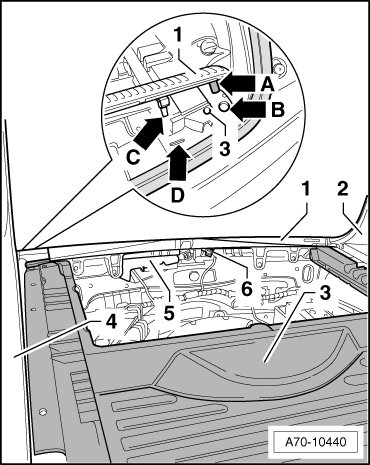

Before installing rear cross panel trim - 1 -, left - 2 - and right - 4 - luggage compartment side trims and luggage compartment floor - 3 - or the floor support on vehicles with a 3rd row must be installed.

- Insulation - 5 - must be guided over striker pin.

- If present, connect connectors - 6 -.

- Insert rear cross panel trim - 1 - with the pins - arrow A - in the hole - arrow B - in luggage compartment floor - 3 -, or in the floor support in vehicles with a 3rd row.

- At the same time, press the rear cross panel trim down. The clamps - arrow C - must be guided into the mounts - arrow D - in the body.

- Then tighten screws => [ (Item 4) Bolt ] Rear Cross Panel Trim Overview to tightening specification.

- Install the rubber seal lip over the leading edge of the rear cross panel trim.

Tightening specification, refer to => [ Rear Cross Panel Trim ].
