Luggage Compartment Floor Handle

Luggage Compartment Floor Handle

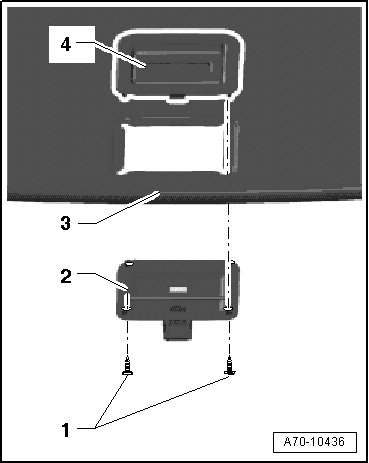

- Remove luggage compartment floor - 3 -.

- Remove screws - 1 - (quantity: 4) and remove counter support - 2 -.

- Remove luggage compartment floor handle - 4 -.

Install in reverse order of removal.
