Basic Sound System

Basic Sound System

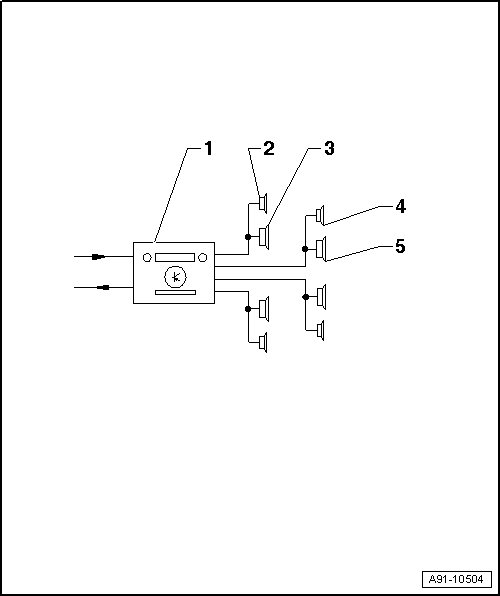

1 Front Information Display Control Head Control Module (J523) In Center Console/Under Center Armrest (Through 29 May 2009)

- Radio (R) Inside The Luggage Compartment Under The Right Flap (From 1 June 2009)

2 Left Front Treble Speaker (R20)/Right Front Treble Speaker (R22) In Mirror Triangle

3 Left Front Bass Speaker (R21)/Right Front Bass Speaker (R23) At Bottom In Front Doors

4 Left Rear Treble Speaker (R14)/Right Rear Treble Speaker (R16) In Door Trim (Rear Top)

5 Left Rear Mid/Low Range Speaker (R159)/Right Rear Mid/Low Range Speaker (R160) At Bottom In Rear Doors
