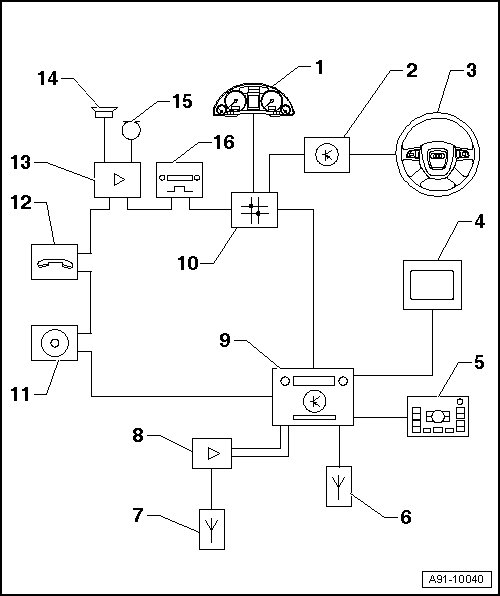

MMI Navigation, Basic Plus Preparation, Through 29 May 2009
MMI Navigation, Basic Plus Preparation, Through 29 May 2009
1 Instrument Cluster Control Module (J285) In The Instrument Panel
2 Steering Column Electronic Systems Control Module (J527) On Steering Column At Steering Column Switches
3 Multifunction Steering Wheel
4 Front Information Display Control Head (J685) In Center Of The Instrument Panel
5 Multimedia System Control Head (E380) In Center Console
6 Radio, Telephone, Navigation System Antenna (R52) Roof Antenna
7 Window Antenna
8 Antenna Amplifier (R24) Behind Right C-Pillar Trim
9 Navigation System With CD Drive Control Module (J401) Contains Front Information Display Control Head Control Module (J523)/Radio (R) Under Center Armrest.
10 Data Bus On Board Diagnostic Interface (J533) Behind Instrument Panel Cover On Drivers Side
11 Digital Sound System Control Module (J525) Behind The Luggage Compartment Right Luggage Compartment Side Trim Panel
12 Sound Systems
13 Microphone Unit In Front Roof Module (R164) In Front Interior Light (W1)
