Navigation System with CD Drive Control Module (J401)

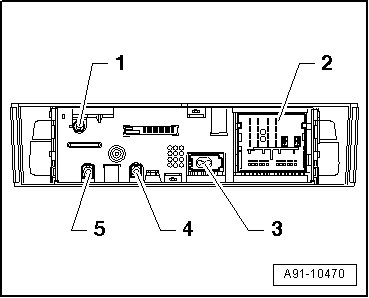

1 GPS connection (blue) from Radio, Telephone, Navigation System Antenna (R52)
2 Connection block with four multi-pin connectors and a fuse for unit
3 MOST bus
4 IF (yellow) connection to Antenna Amplifier (R24)
5 HF (white) connection from Antenna Amplifier (R24)

• Unlisted connector terminals are not used.

A -Multi-Pin Connector, Brown 8-pin (T8o)





1 Wake up to Multimedia Control Head (E380)
4 Res HU to Multimedia Control Head (E380)
5 Res BT to Multimedia Control Head (E380)
8 Ground (GND) to Front Information Display Control Head (J685)

B -Multi-Pin Connector, Green 12-pin (T12p)





1 Data to Multimedia Control Head (E380)
3 Data (+) to Front Information Display Control Head (J685)
4 Data (-) to Front Information Display Control Head (J685)
5 Data to Multimedia Control Head (E380)

C - Multi-Pin Connector, Blue 12-pin (T12q)





5 Data (-) from Front Information Display Control Head (J685)
7 Ground (GND) to Multimedia Control Head (E380)
11 Data (+) from Front Information Display Control Head (J685)

D - Multi-Pin Connector, Black 8-pin (T8p)





11 LF mute from preliminary setup for cell phone preparation
12 Terminal 31
13 Voltage supply to Front Information Display Control Head (J685)
14 Ring-break diagnostic cable
15 Terminal 30
16 Voltage supply to Multimedia Control Head (E380)

3 - MOST bus





1 Input
2 Output
