Alarm Horn (H12)

Alarm Horn (H12)

Removing






- Remove windshield wiper motor. Refer to => [ Windshield Wiper Motor with Wiper Motor Control Module ] Windshield Wiper Motor With Wiper Motor Control Module.

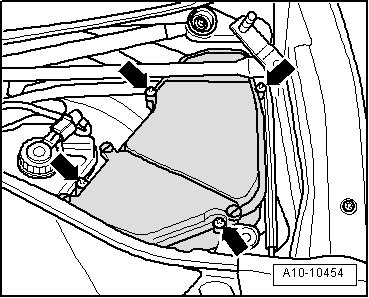

- Remove E-Box plenum chamber cover - arrows -.

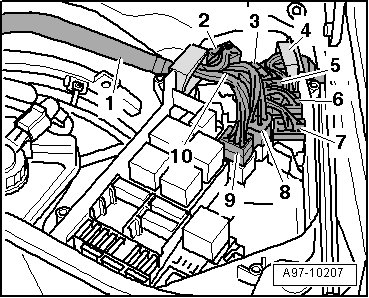

- Disconnect electrical multi-pin connectors - 2, 3, 5, 6, 7, 8, 9 - on E-Box plenum chamber connector station.






- Remove connector - 10 - from E-box plenum chamber.

- Remove both wiring harnesses - 1 - and - 4 - from E-box plenum chamber mount.

- Remove E-box plenum chamber upward out of retaining pins.

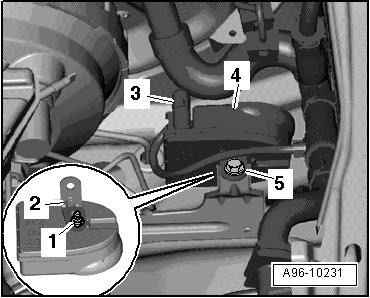

- Remove screw - 5 - and remove Alarm Horn from plenum chamber.






- Disconnect electrical connector - 3 -.

- Remove nut - 1 - and remove bracket - 2 - for Alarm Horn.

Installing






Install in reverse order of removal, observing the following:

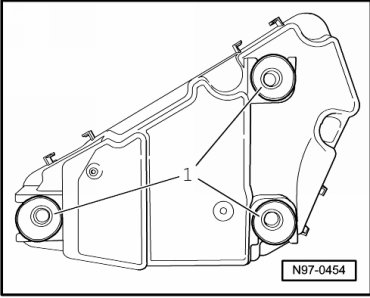

- Check whether rubber retainers - 1 - sit in E-box plenum chamber guides, insert if necessary.

- Install windshield wiper motor. Refer to => [ Windshield Wiper Motor with Wiper Motor Control Module ] Windshield Wiper Motor With Wiper Motor Control Module.

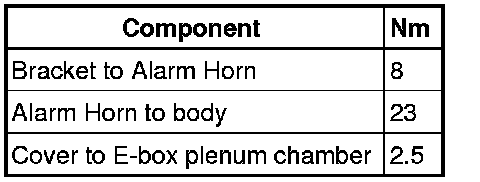

Tightening Specifications
