Alarm Horn: Locations

Central Locking / Anti-Theft Systems

Alarm Horn/Signal Horn



Alarm Horn






3 - Electrical Connector
4 - Alarm Horn -H12-
- Located under the E-box in the plenum chamber

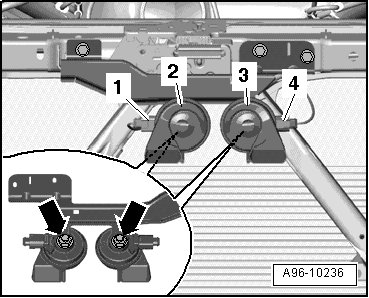

Signal Horn/Dual Tone Horn






- - High Tone Horn -H2- /Low Tone Horn -H7- -2 and 3-
