Washer Fluid Level Switch: Service and Repair

Windshield Washer Fluid Level Sensor (G33)

Special tools, testers and auxiliary items required

• Drip Tray

Observe notes on contact corrosion => [ Contact Corrosion ] Service Precautions.

Removal






- Remove the left front wheel housing liner.

- Place a drip tray under the windshield washer fluid reservoir.

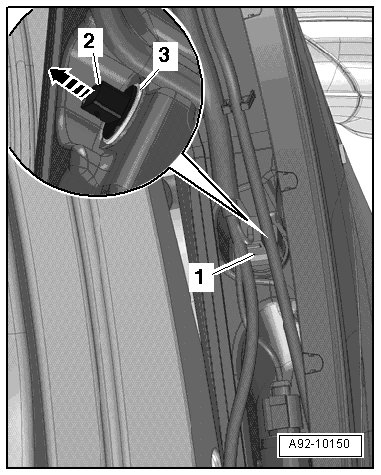

- Disconnect the electrical connector - 1 -.

- Remove the windshield washer fluid level sensor - item 2 - from the washer fluid reservoir.

Installation

Install in reverse order of removal, observing the following:

- Check the sealing grommet - 3 - for damage.

- Install the front wheel housing liner.
