Rear Door Window

Rear Door Window

Removing






- Remove the door trim.

- Remove the inner window shaft strip. Refer to => [ Outer and Inner Window Shaft Strip Assembly Overview ] Outer and Inner Window Shaft Strip Assembly Overview.

- Remove the inner door panel cover. Refer to => [ Inner Door Panel Cover ] Inner Door Panel Cover and remove the plugs next to the window regulator motor.

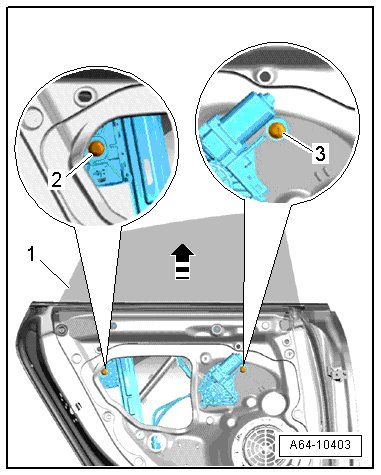

- Lower the door window until the bolts - 2 - and - 3 - are visible.

- Remove the bolts - 2 - and - 3 -.

- Remove the door window - 1 - upward out of the clamping bracket and remove it from the door.

Installing

Installation is performed in the reverse order of removal.

• Before installing the rear bolt, make sure the door window is seated in the clamping bracket mount.

- Carefully side the door window parallel down into the clamping brackets. Make sure the door window in the front window guide does not slip out.

- Press the door window down into the clamping brackets.

- Tighten the bolts.

• Gap dimensions, refer to => [ Rear Door Window Gap Dimensions ] Rear Door Window Gap Dimensions.

• For the correct tightening specifications, refer to => [ Window Regulator Motor and Window Regulator Assembly Overview ] Window Regulator Motor and Window Regulator Assembly Overview.
