Front Door Window

Front Door Window

Removing






- Remove the door trim panel and the bass speaker.

- Run the door window down until the bolts in the opening are visible.

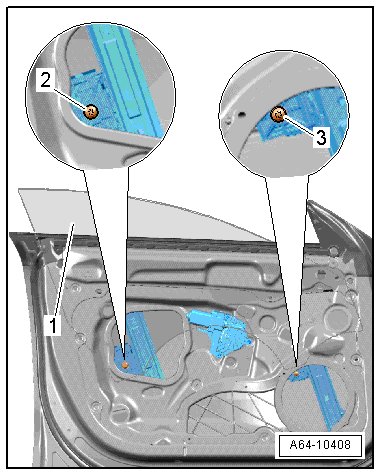

- Remove the bolt - 2 - from the B-pillar; just loosen the front bolt - 3 - on the A-pillar.

• Remove the bolt - 2 - completely. Otherwise, the door window cannot be removed.

- Swivel the door window - 1 - on the B-pillar out of the mount on the clamping bracket.

- Remove the door window upward out of the clamping bracket and remove it from the door - arrow -.

Installing

• Gap dimensions, refer to => [ Front Door Window Gap Dimensions ] Front Door Window Gap Dimensions.

• For the correct tightening specifications, refer to => [ Window Regulator Motor and Window Regulator Assembly Overview ] Window Regulator Motor and Window Regulator Assembly Overview.

Installation is performed in the reverse order of removal.

- Insert the door window forward into the door window guide diagonally and then rotate it back into the door shaft.

- Carefully side the door window parallel down into the clamping brackets. Make sure the door window in the front window guide does not slip out.

- Press the door window all the way down into the clamping brackets.

• Before installing the rear bolt, make sure the door window is seated in the clamping bracket mount.

- Tighten bolts to tightening specification.

- Adjust the door window. Refer to => [ Front Door Window, Adjusting ] Front Door Window, Adjusting.
