Rear Door Window Assembly Overview

Rear Door Window Assembly Overview

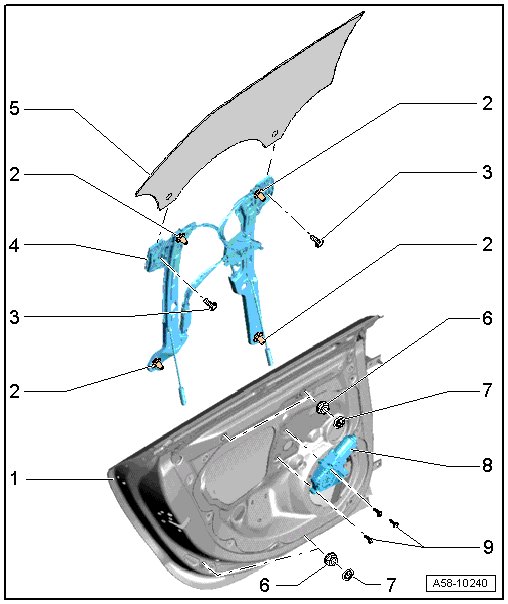

1 Rear Door

2 Adjusting screw

• Turn the screw in or out to adjust laterally.

3 Bolt

• 9 Nm

4 Window regulator

• Removing and installing, refer to => [ Window Regulator ] Window Regulator

5 Rear Door Window

6 Nut

• Torque => [ (Item 6) Nut ] Window Regulator Motor and Window Regulator Assembly Overview

7 Cover

8 Window regulator motor

• Removing, refer to => [ Window Regulator Motor ] Window Regulator Motor

9 Bolt

• Torque => [ (Item 9) Bolt ] Window Regulator Motor and Window Regulator Assembly Overview
