Front Door Window, Adjusting

Front Door Window, Adjusting

Special tools, testers and auxiliary items required

• Socket (T10058)






• Use to adjust the height

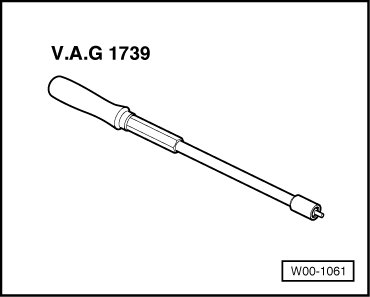

• Side Window Installation Tool (V.A.G 1739)






• Use to adjust laterally.

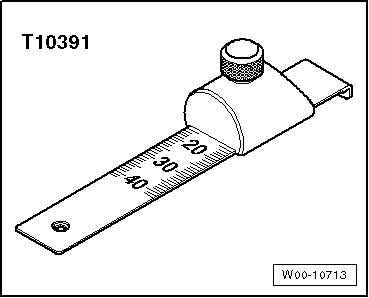

• Gauge (T10391)






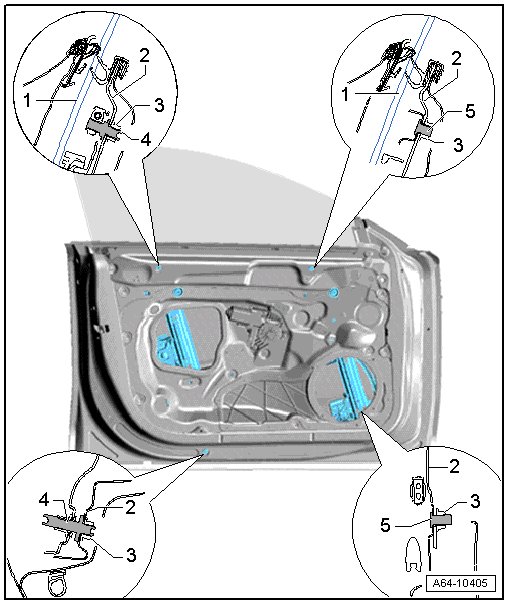

Lateral Adjustment

• Adjustment dimensions, refer to => [ Front Door Window Gap Dimensions ] Front Door Window Gap Dimensions.






1 Door window

• The front window regulator is bolted to the A-pillar and cannot be adjusted.

• Adjusting the top of the B-pillar:

- Remove door trim.

- To adjust, loosen the locking nut - 3 - and rotate the adjusting pins - 4 - using a Torx(R) socket wrench.

• Turn left - the door window rotates outward.

• Turn right - the door window rotates inward.

- Tighten the locking nut - 3 - after adjusting.

• Adjusting the bottom of the B-pillar:

• It is not necessary to remove the door trim panel.

- To adjust, loosen the locking nut - 2 - and rotate the adjusting pins - 1 - using a Torx(R) socket wrench.

• Turn left - the door window rotates inward

• Turn right - the door window rotates outward

• Tighten the locking nut after adjusting.

2 Door inner panel

3 Nut

• 9 Nm

4 Adjusting bolt

5 Threaded pins

• Included with the replacement window regulator

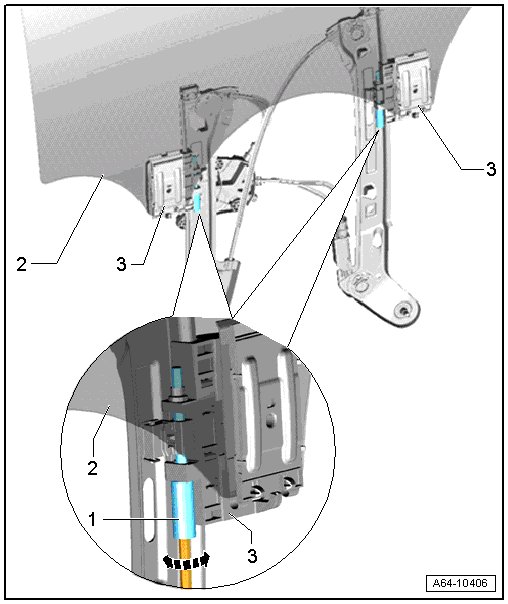

Adjusting the height

• Adjustment dimensions, refer to => [ Front Door Window Gap Dimensions ] Front Door Window Gap Dimensions.






1 Adjusting screw

• 1 turn corresponds to approximately 1 mm.

• For adjusting the upper edge of the door window on the seal in the front or rear roof area

• Accessible through the holes on the bottom edge of the door. The door trim does not need to be removed.

- Turn the adjusting screw 5 mm using a long hex socket wrench to adjust the height.

2 Door window

3 Window regulator
