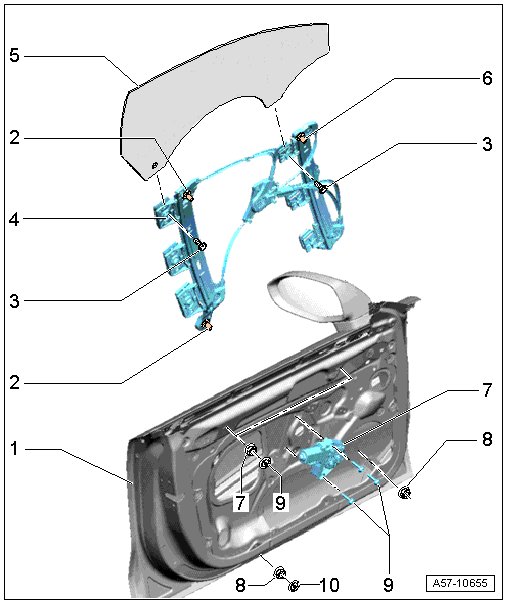

Front Door Window Assembly Overview

Front Door Window Assembly Overview






1 Door

2 Bolt

• Torque, refer to => [ Window Regulator Motor and Window Regulator Assembly Overview ] Window Regulator Motor and Window Regulator Assembly Overview

3 Bolt

• 9 Nm

4 Window regulator

• Adjusting, refer to => [ Front Door Window, Adjusting ] Front Door Window, Adjusting.

5 Door window

6 Threaded pins

7 Window Regulator Motor

8 Nut

• Torque, refer to => [ Window Regulator Motor and Window Regulator Assembly Overview ] Window Regulator Motor and Window Regulator Assembly Overview

9 Bolt

• Torque, refer to => [ Window Regulator Motor and Window Regulator Assembly Overview ] Window Regulator Motor and Window Regulator Assembly Overview

10 Cover
