Final Drive, Differential (0BKA Automatic Transmission)

Special Tools






Special tools, testers and auxiliary items required

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Thrust Disc (VW 412)

• Press Tube (2040)

• Tube 60 mm Dia. (VW 415 A)






Special tools, testers and auxiliary items required

• Thrust Plate (VW 401)

• Thrust Plate (VW 402)

• Thrust Disc (VW 412)

• Arbor 50 mm Dia. (VW 432)

• Carrier Bearing Inst. Tool (3350)

• Separating tool 22 to 115 mm Kukko 17/2

Special tools, testers and auxiliary items required

• Press Tube (30 - 100)






• Retainer (3419)






• Thrust Piece (T10139)






• Pulling Hook (T20143)






• Thrust Piece (T40189)






• Oil Seal Installing Tool (T40239)






• Oil Collecting and Extracting Device (V.A.G 1782)

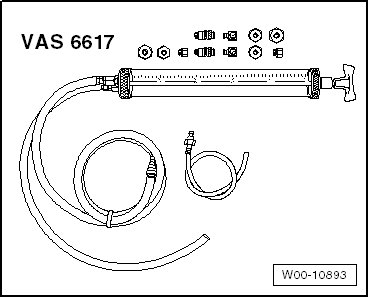

• Pressurized Gearbox Oil Filler (VAS 6617)






• Needle Bearing Drift (VW 295)






• Punch (VW 409)






• Tube 42 mm Dia. (VW 516)






• Extractor Lever (VW 681) or Pulling Hook (T20143/2)






• Slide Hammer-Complete Set (VW 771)






• Not illustrated:

• Transmission Support (3282)

• Guide Sleeve (T40239/1)

• Engine/Transmission Jack (V.A.G 1383 A)

• Engine and Transmission Holder (VAS 6095)

• Adapter (VAS 6617/2)

• Adapter (VAS 6617/6)

• Pulling Hook (VW 771/13)











Edition 9 30 2011
