Controls, Housing

Special Tools

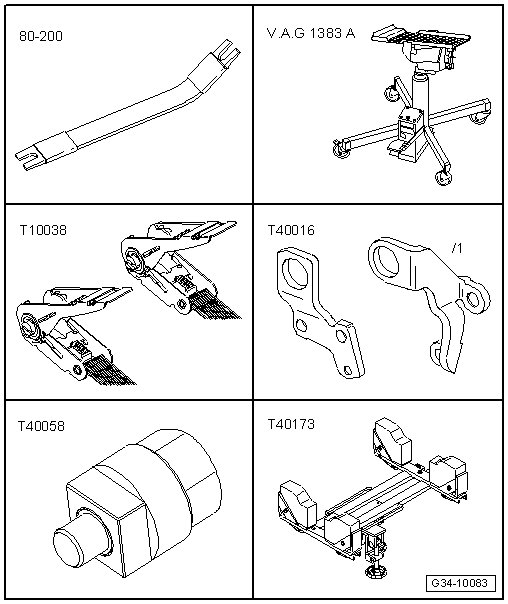

Special tools, testers and auxiliary items required

• Pry Lever - Rmv Outside Mirror (80 - 200)

• Engine/Transmission Jack (V.A.G 1383 A)

• Tensioning Strap (T10038)

• Motor Transport Loop (T40016)

• Socket (T40058)

• Transmission Support (T40173)

Special tools, testers and auxiliary items required

• Hose Clamps Up to 25 mm Dia. (3094)






• Pry Lever - Rmv Outside Mirror (80 - 200)

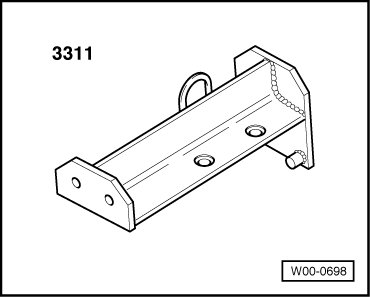

• Hook and Support Tool (3311) with Bolt (3311/1)






• Trim Removal Wedge (3409)






• Transmission Support (T10337)






• Transportation Lock (T40170)






• Socket and Key (T40031)






• Ring Spanner Insert AF 16 (V.A.G 1332/14)






• Oil Collecting and Extracting Device (V.A.G 1782)






• Engine and Transmission Holder (VAS 6095)






• Shop Crane -Load Cap=700-1200kg (VAS 6100)






• Adapter for Oil Filling (VAS 6262 A)






• Holding Plate (VW 309)






• Not illustrated:

• Hook and Support tool (3311)

• Shop Crane -Load Cap=700-1200kg (VAS 6100)

• Engine Bung Set (VAS 6122)

• Adapter, Jointed Hose (VAS 6262/5)
