Transmission, Securing In Engine/Transmission Holder

Transmission, Securing in Engine/Transmission Holder

Special tools, testers and auxiliary items required

• Hook and Support tool (3311)

• Holding Plate (VW 309)

• Engine and Transmission Holder (VAS 6095) Shop Crane -Load Cap=700-1200kg (VAS 6100)

Procedure






• Transmission secured with the (VAS 6100). Refer to => [ Transmission, Transporting ] 0BKA Transmission.

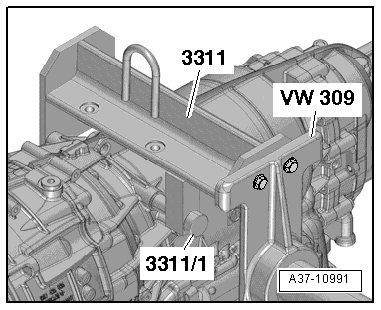

- Install the (VW 309) on the (3311).

- Place the transmission into the (VAS 6095) using the (VAS 6100).

• The vents for the transmission housing and final drive must be closed before turning a filled transmission with ATF pan upward on the engine/transmission holder.
