Shift Indicator - A/T: Service and Repair

Selector Lever Transmission Range Position Display (Y26)

Removing






- Remove the multimedia system control head.

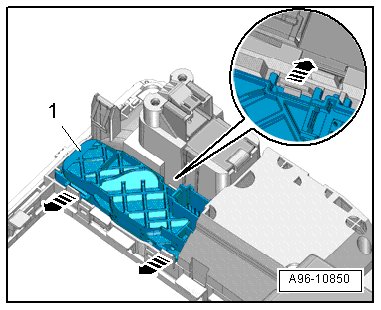

- Release the tabs with a narrow screwdriver - arrows -.

- Remove the selector lever transmission range position display unit - 1 - from the control head.

Installing

Install in reverse order of removal. Note the following:

- Install the multimedia system control head.
