Transmission Drain and Inspection Plug Overview

Transmission Drain and Inspection Plug Overview

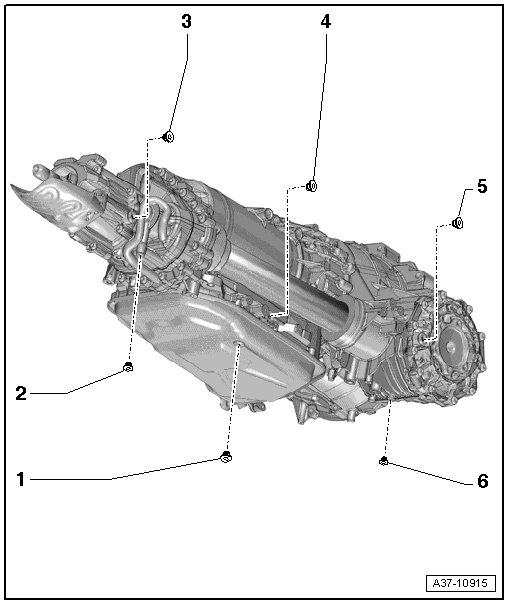

1 ATF Drain Plug

• 12 Nm

• Replace

2 Oil Drain Plug

• For the transmission fluid inside the transfer case

• Tightening specification - item 4 - => [ (Item 4) Oil Drain Plug ] Gear Oil Drain and Inspection Plugs Overview

3 Drain Plug

• For the hole for checking and filling

• For the transmission fluid inside the transfer case

• Tightening specification - item 1 - => [ (Item 1) Drain Plug ] Gear Oil Drain and Inspection Plugs Overview

4 ATF Plug

• 30 Nm

• Replace

• For the hole for checking and filling

• For the ATF in the transmission

5 Drain Plug

• For the hole for checking and filling

• For the transmission fluid inside the front final drive

• Tightening specification - item 2 - => [ (Item 2) Drain Plug ] Gear Oil Drain and Inspection Plugs Overview

6 Oil Drain Plug

• For the transmission fluid inside the front final drive

• Tightening specification - item 3 - => [ (Item 3) Oil Drain Plug ] Gear Oil Drain and Inspection Plugs Overview
