Threshold "A" In mm

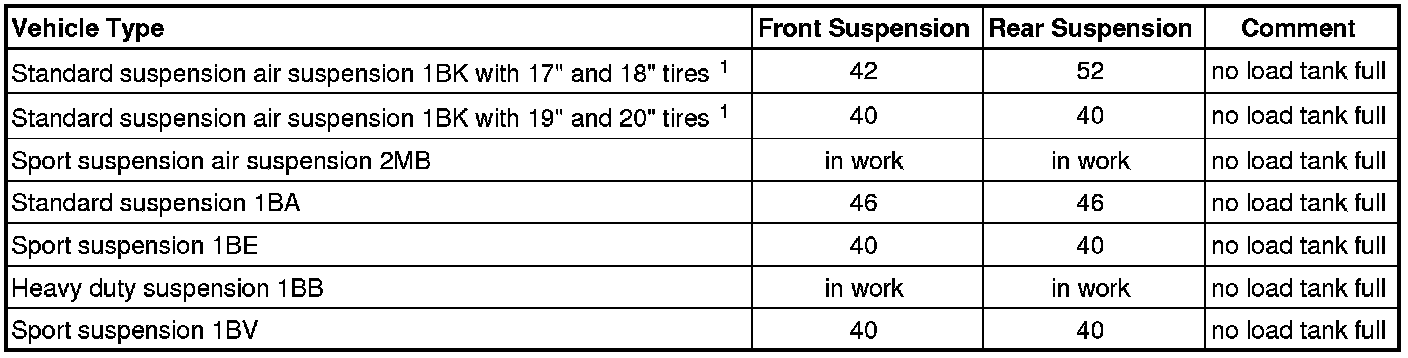

Threshold "a" in mm

• If the readout value is greater than the limit value "a" (table value) : Damping effect insufficient => Replace shock absorber.

• If the readout value is less than the limit value "a" (table value) : Damping effect sufficient => Shock absorber does not need to be replaced.

Sportback






• 1) The vehicle is set to standard vehicle height; it is not permitted to perform the measurement when the vehicle is set to dynamic and with the vehicle lifted in highest level.

• The tires must be "partially loaded" when measuring the tire pressure.
