Vehicle With Air Suspension, Bringing to Control Position For Wheel Alignment

Vehicle with Air Suspension, Bringing to Control Position for Wheel Alignment

Axle Alignment Control Position, Checking

Before performing an axle alignment on a vehicle with air suspension, check the curb weight or control position and adapt it again if necessary.

- Start the "axle alignment" using the vehicle diagnostic tester in "Guided Functions".

Determining the Height Dimension - a -






Height dimension - a - is the measurement in mm between center of wheel and lower edge of fender.

- Determine dimension - a - between the center of the wheel and the lower edge of the fender/wheel housing as illustrated.

Height Dimensions Overview

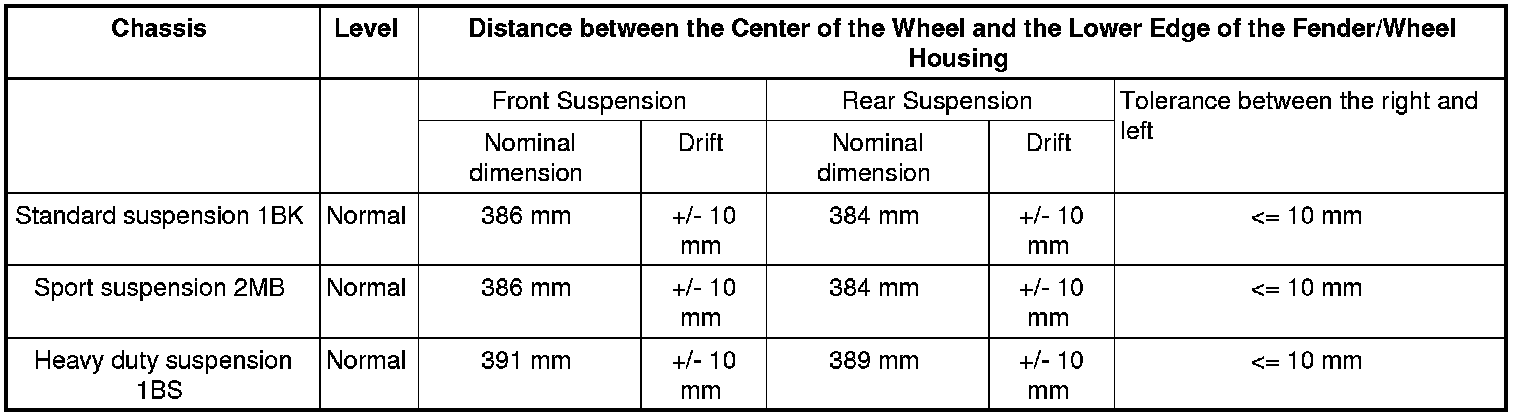

Sportback

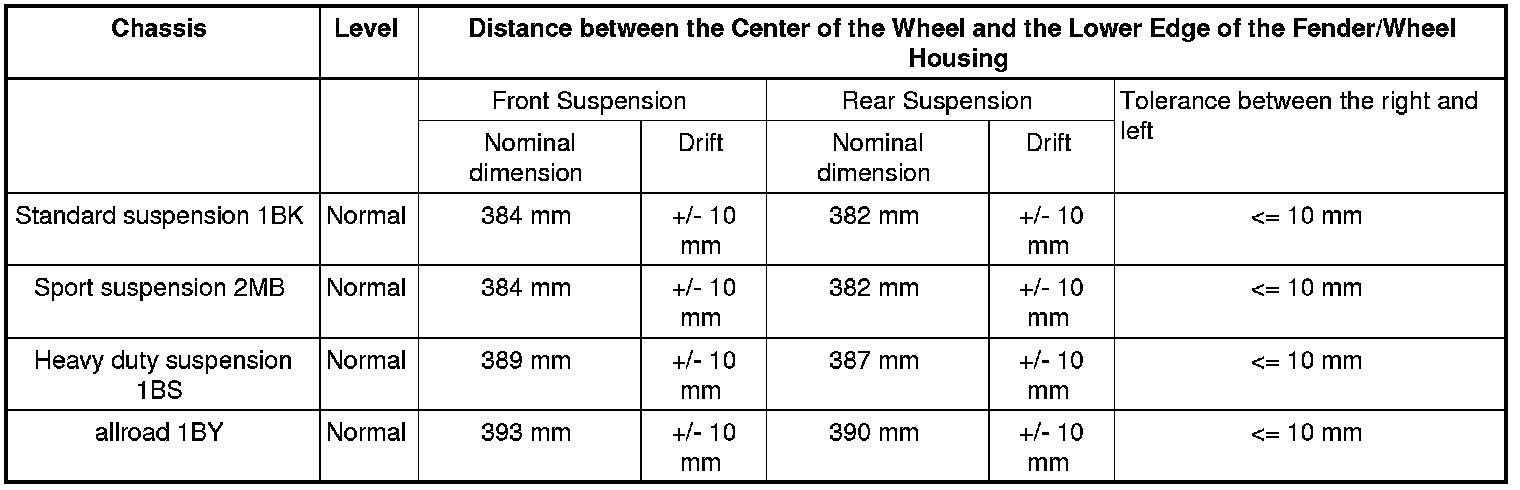

Sedan/Avant
