Fuses (SC) On Fuse Panel C

Fuses

Fuses (SC) on fuse panel C

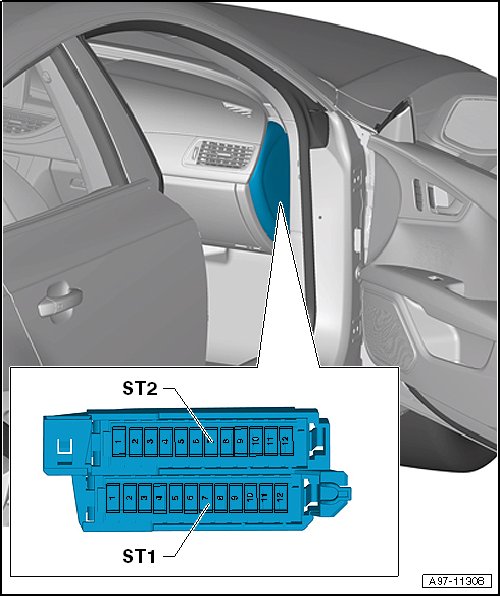

Component Location, left-hand drive:


On right instrument panel





ST1 - Fuse Carrier ST1 (black)
• Position of fuses => [ Position of Fuses Fuse Carrier ST1 ] Fuses (SC) On Fuse Panel C

ST2 - Fuse Carrier ST2 (brown)
• Position of fuses => [ Position of Fuses Fuse Carrier ST2 ] Fuses (SC) On Fuse Panel C

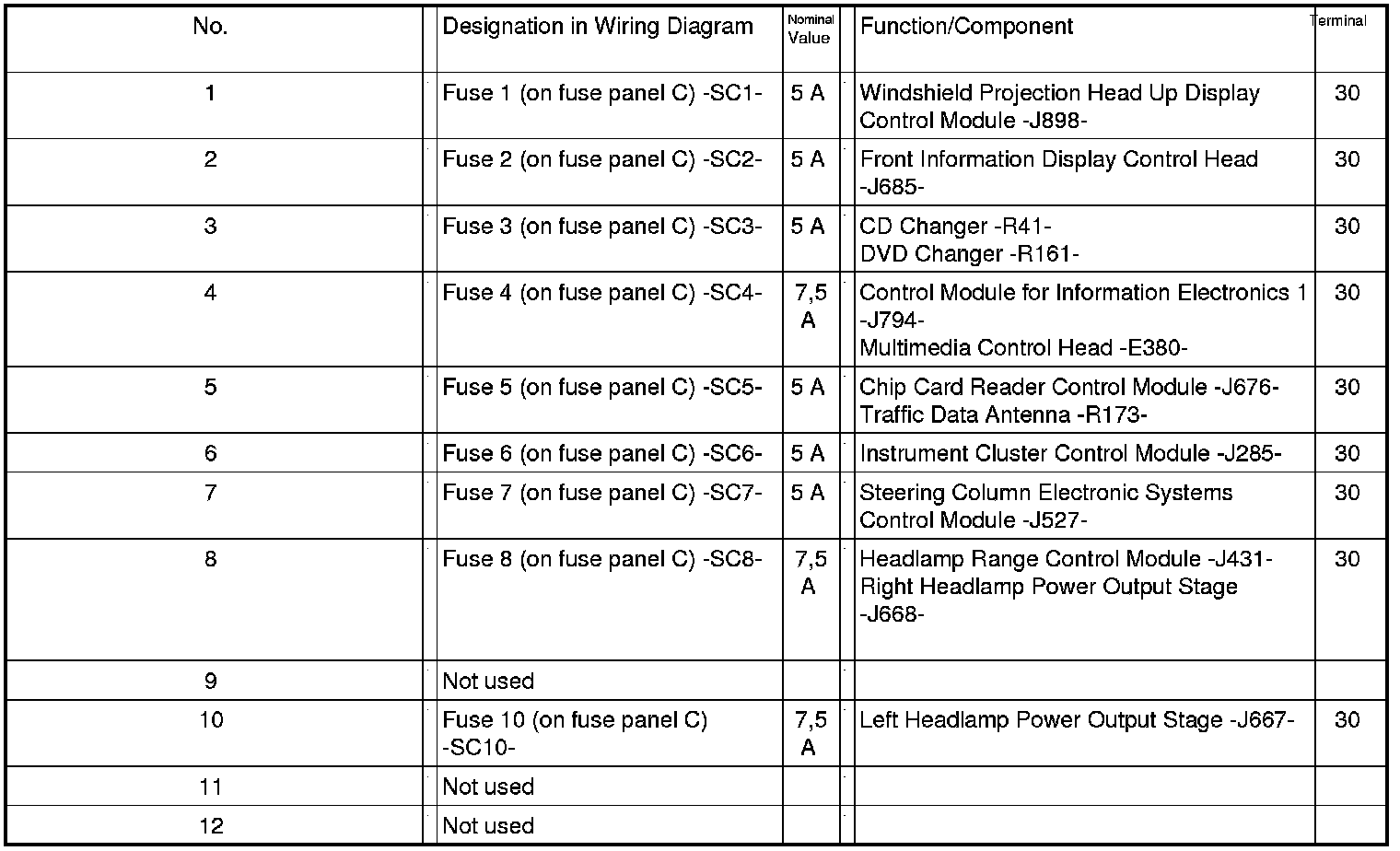

Position of Fuses Fuse Carrier ST1

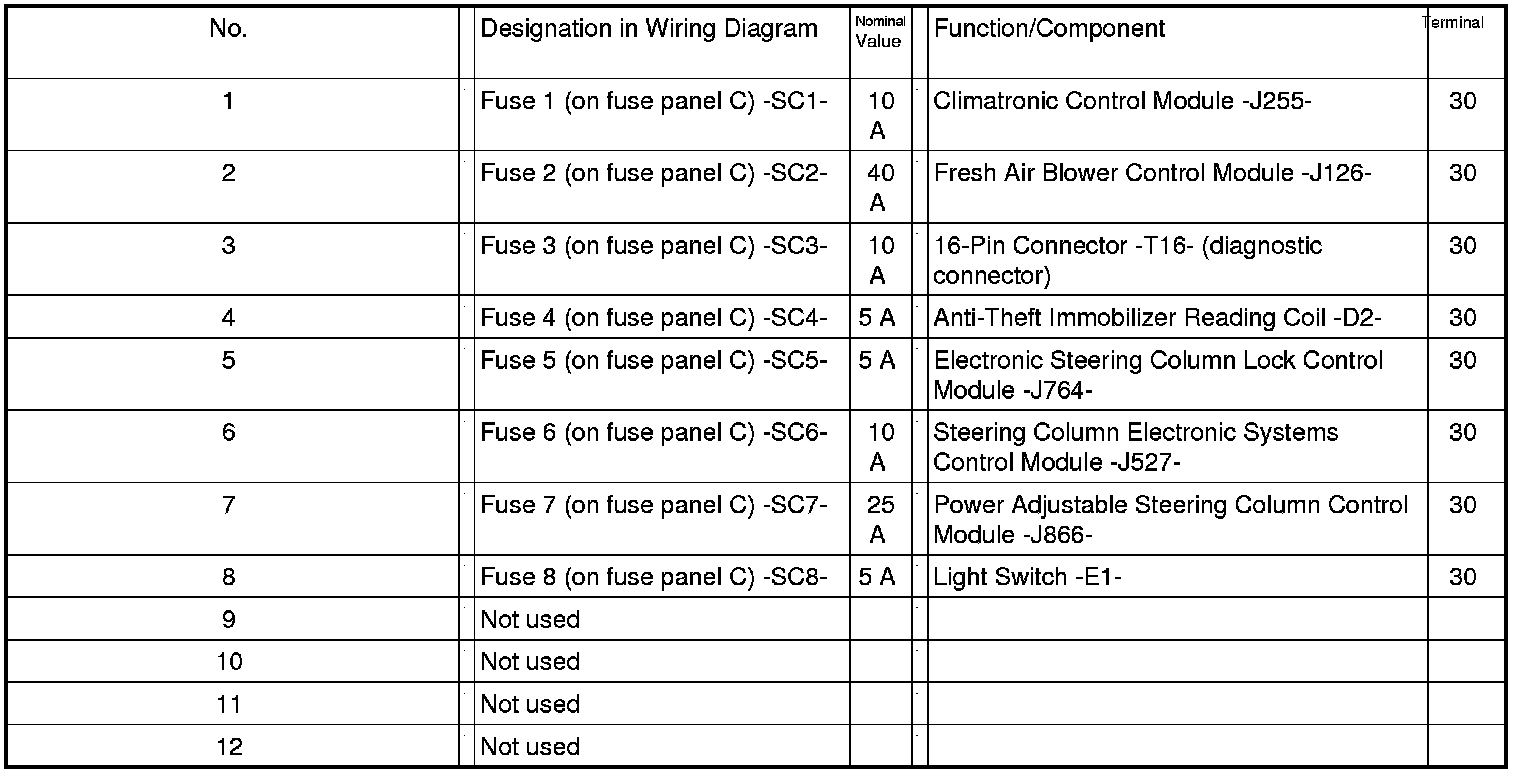

Position of Fuses Fuse Carrier ST2

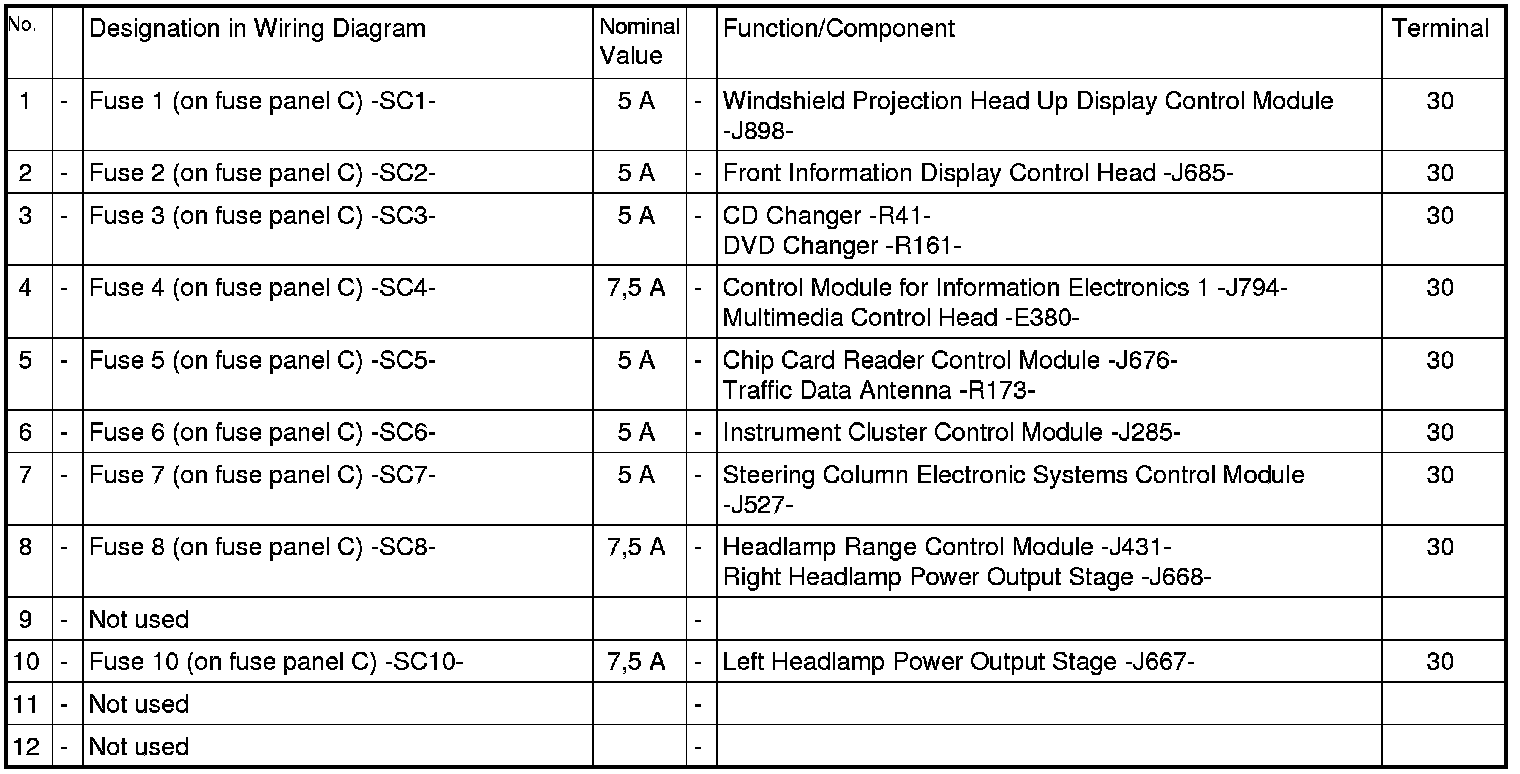

Position of Fuses Fuse Carrier ST1









Position of Fuses Fuse Carrier ST2
