Diagram 22/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

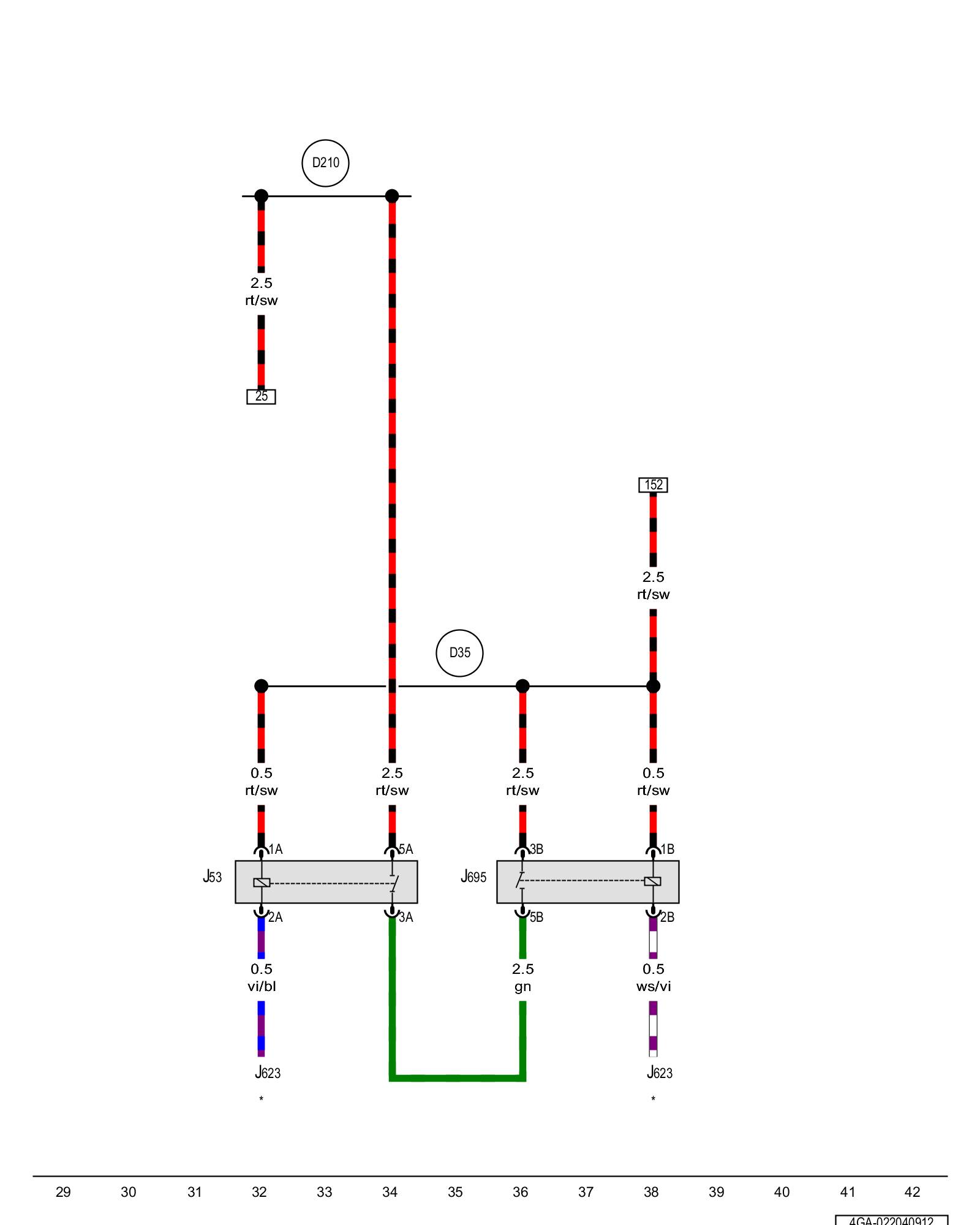

Starter relay, Relay 2 for starter





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J53 - Starter relay Locations

J623 - Engine control module Locations

J695 - Relay 2 for starter Locations

(D35) - Positive connection 1 (15a) (in engine wiring harness)

(D210) - Connection 50 (in engine compartment wiring harness)

* - Refer to applicable engine wiring diagram
