Diagram 22/35 (Tracks 463-476)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

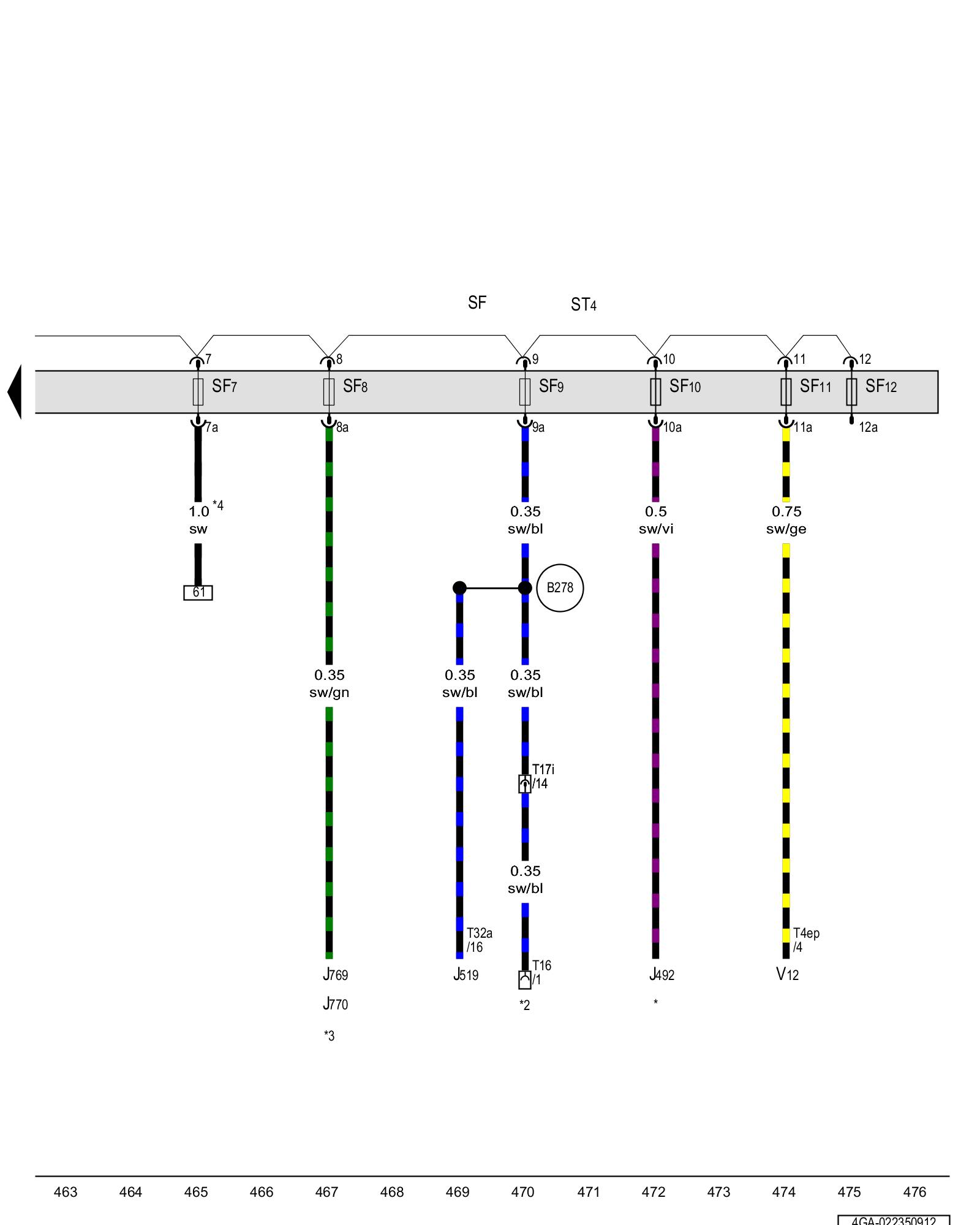

Fuse panel F, Fuse panel 4





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J492 - All wheel drive control module Locations All-Wheel Drive System

J519 - Vehicle electrical system control module Locations

J769 - Lane change assistance control module Lane Assist System Overview

J770 - Lane change assistance control module 2 Lane Assist System Overview

SF - Fuse panel F, on the relay and fuse carrier in the luggage compartment, right Overview Of Fuses

ST4 - Fuse panel 4, green

SF7 - Fuse 7 (on fuse panel F) Overview Of Fuses

SF8 - Fuse 8 (on fuse panel F) Overview Of Fuses

SF9 - Fuse 9 (on fuse panel F) Overview Of Fuses

SF10 - Fuse 10 (on fuse panel F) Overview Of Fuses

SF11 - Fuse 11 (on fuse panel F) Overview Of Fuses

SF12 - Fuse 12 (on fuse panel F) Overview Of Fuses

T4ep - 4-pin connector

T16 - 16-pin connector Locations

T17i - 17-pin connector, in the left A-pillar connector station Locations

T32a - 32-pin connector Vehicle Electrical System Control Module -J519-

V12 - Rear window wiper motor

(B278) - Positive connection 2 (15a) (in main wiring harness)

* - Only for vehicles with all wheel drive

*2 - Diagnostic connector

*3 - Refer to applicable lane assist wiring diagram

*4 - Diameter depends on equipment

Previous Diagram 22/34 (Tracks 449-462)

Next Diagram 22/36 (Tracks 477-490)
